Designed for power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. May be used in Class I, Div. 2 and Class II, Div. 2
Hazardous Locations per NEC Art. 501 and 502. These cables also conform to Art. 392 "Cable Trays" and Art. 336 "Power and Control Tray Cable."

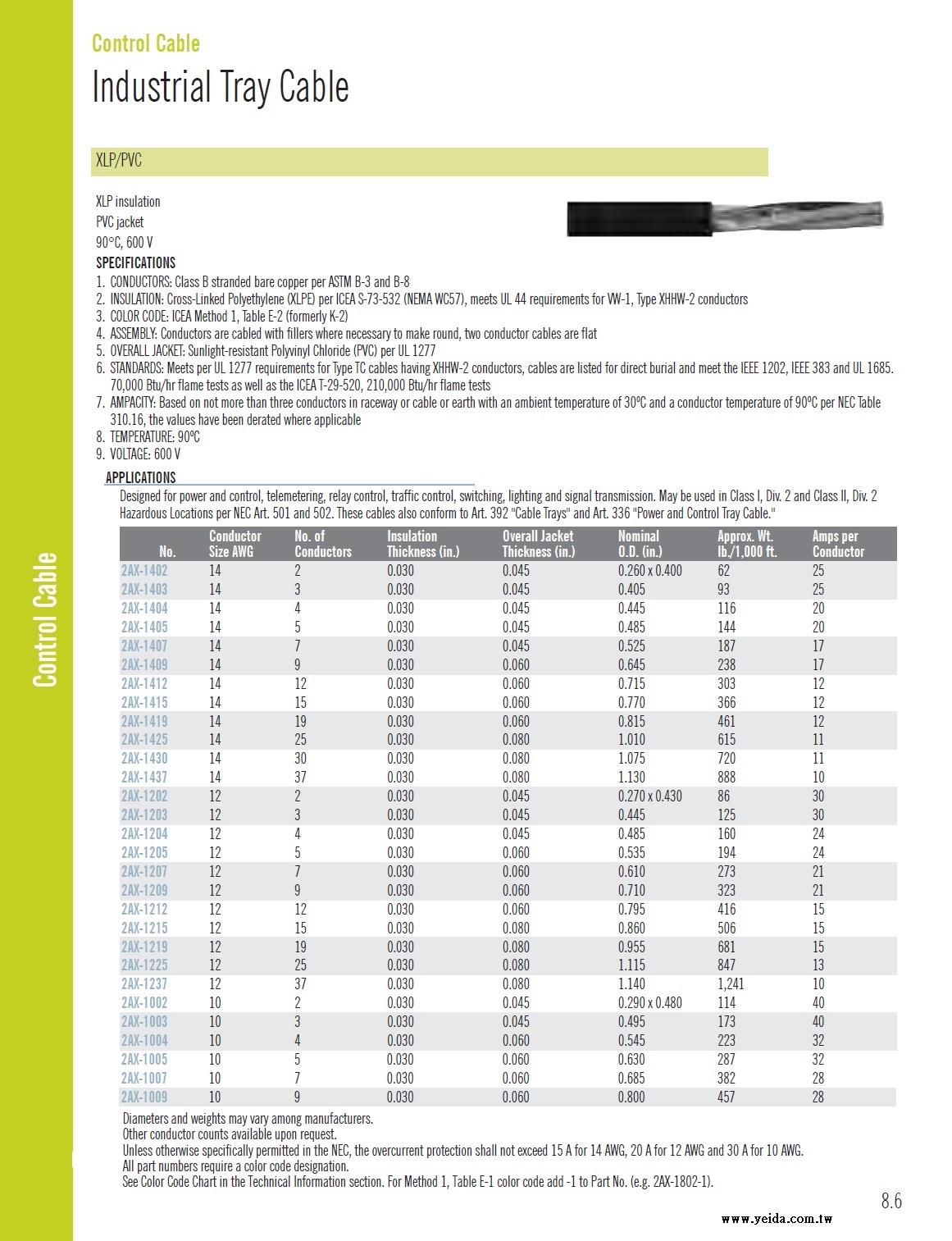

Industrial Tray Cable

XLP/PVC

XLP insulation
PVC jacket
90°C, 600 V
　

SPECIFICATIONS
1. CONDUCTORS:Class B stranded bare copper per ASTM B-3 and B-8
2. INSULATION:Cross-Linked Polyethylene (XLPE) per ICEA S-73-532 (NEMA WC57), meets UL 44 requirements for VW-1, Type XHHW-2 conductors
3. COLOR CODE: ICEA Method 1, Table E-2 (formerly K-2)
4. ASSEMBLY: Conductors are cabled with fillers where necessary to make round, two conductor cables are flat
5. OVERALL JACKET:Sunlight-resistant Polyvinyl Chloride (PVC) per UL 1277
6. STANDARDS: Meets per UL 1277 requirements for Type TC cables having XHHW-2 conductors, cables are listed for direct burial and meet the IEEE 1202, IEEE 383 and UL 1685.
70,000 Btu/hr flame tests as well as the ICEA T-29-520, 210,000 Btu/hr flame tests
7. AMPACITY: Based on not more than three conductors in raceway or cable or earth with an ambient temperature of 30ºC and a conductor temperature of 90ºC per NEC Table
310.16, the values have been derated where applicable
8. TEMPERATURE: 90ºC
9. VOLTAGE:600 V
　

APPLICATIONS
Designed for power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. May be used in Class I, Div. 2 and Class II, Div. 2
Hazardous Locations per NEC Art. 501 and 502. These cables also conform to Art. 392 "Cable Trays" and Art. 336 "Power and Control Tray Cable."
