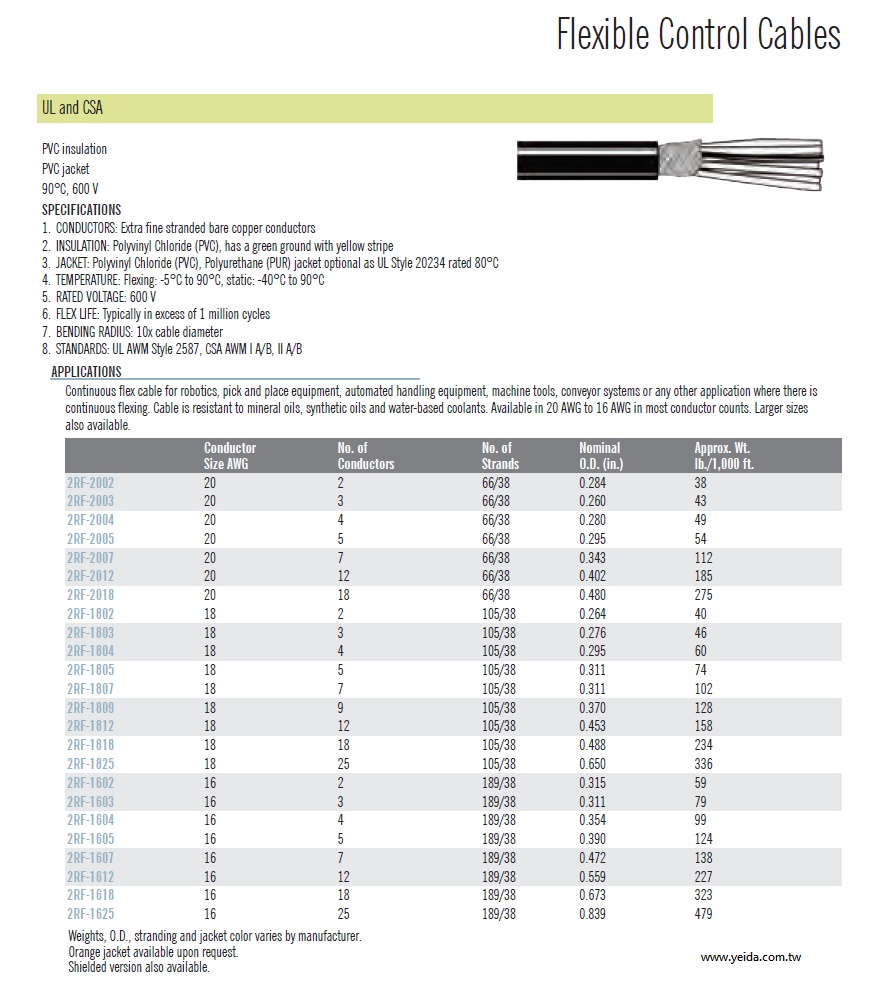

    UL AND CSA PVC-PVC FLEXIBLE CONTROL CABLE PVC-PVC 機器人超柔軟控制電纜
    看原圖
    		5257191

    商品編號: ANIXT-2RF-2002

    UL AND CSA PVC-PVC FLEXIBLE CONTROL CABLE PVC-PVC 機器人超柔軟控制電纜

    Continuous flex cable for robotics, pick and placeequipment, automated handling equipment, automatedhandling equipment, machine tools, conveyorsystems or any other application where there iscontinuous flexing. Cable is resistant to mineraloils, synthetic oils and water based coolants.Available in 20 AWG to 14 AWG in most conductorcounts. Larger sizes also available.

    ULAND CSA
    PVC Insulation
    PVC Jacket
    90°C 600V


    APPLICATIONS:
    Continuous flex cable for robotics, pick and place
    equipment, automated handling equipment, automated
    handling equipment, machine tools, conveyor
    systems or any other application where there is
    continuous flexing. Cable is resistant to mineral
    oils, synthetic oils and water based coolants.
    Available in 20 AWG to 14 AWG in most conductor
    counts. Larger sizes also available.


    SPECIFICATIONS:
    1. CONDUCTORS:     Extra fine stranded bare copper conductors.
    2. INSULATION: PVC. Has a green ground with a yellow stripe.
    3. JACKET: PVC. PUR jacket optional as UL style 20234 rated 80°C.
    4. TEMPERATURE: Flexing: -5°C to 90°C
    Static: -40°C to 90°C
    5. RATED VOLTAGE: 600V
    6. FLEX LIFE: Typically in excess of 1 million cycles.
    7. BENDING RADIUS: 10X cable diameter.
    8. STANDARDS: UL AWM Style 2587, CSA AWM I A/B, II A/B
