    首頁 > > AY- UL Styles Hook-up Leadwire1 (電子線)

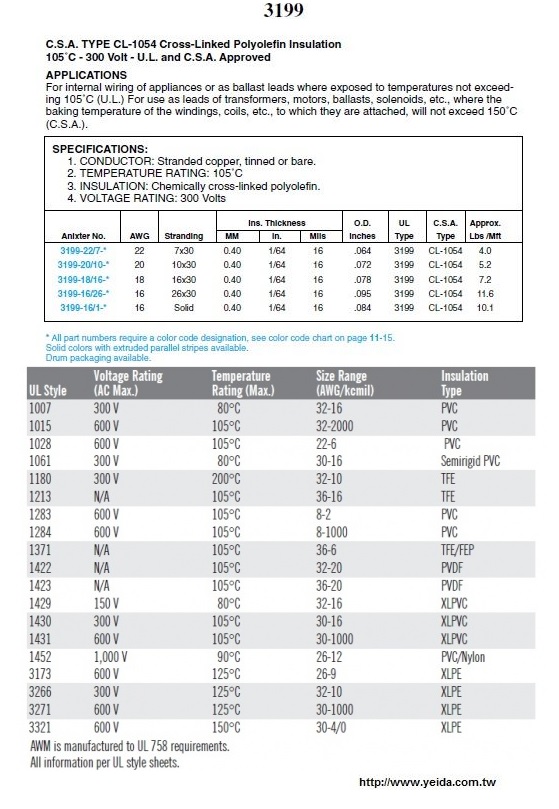

    UL3199 C.S.A. TYPE CL-1054 Cross-Linked Polyolefin Insulation 105°C - 300 Volt - U.L. and C.S.A. Approved XLpolyolefin電子線
    看原圖
    		5263408

    商品編號: ANIXT-UL3199

    UL3199 C.S.A. TYPE CL-1054 Cross-Linked Polyolefin Insulation 105°C - 300 Volt - U.L. and C.S.A. Approved XLpolyolefin電子線

    For internal wiring of appliances or as ballast leads where exposed to temperatures not exceeding105°C (U.L.) For use as leads of transformers, motors, ballasts, solenoids, etc., where thebaking temperature of the windings, coils, etc., to which they are attached, will not exceed 150°C(C.S.A.).

    UL 3199
    C.S.A. TYPE CL-1054 Cross-Linked Polyolefin Insulation
    105°C - 300 Volt - U.L. and C.S.A. Approved
    　

    APPLICATIONS
    For internal wiring of appliances or as ballast leads where exposed to temperatures not exceeding
    105°C (U.L.) For use as leads of transformers, motors, ballasts, solenoids, etc., where the
    baking temperature of the windings, coils, etc., to which they are attached, will not exceed 150°C
    (C.S.A.).
    　

    SPECIFICATIONS:
    1. CONDUCTOR:     Stranded copper, tinned or bare.
    2. TEMPERATURE RATING: 105°C
    3. INSULATION: Chemically cross-linked polyolefin.
    4. VOLTAGE RATING: 300 Volts
