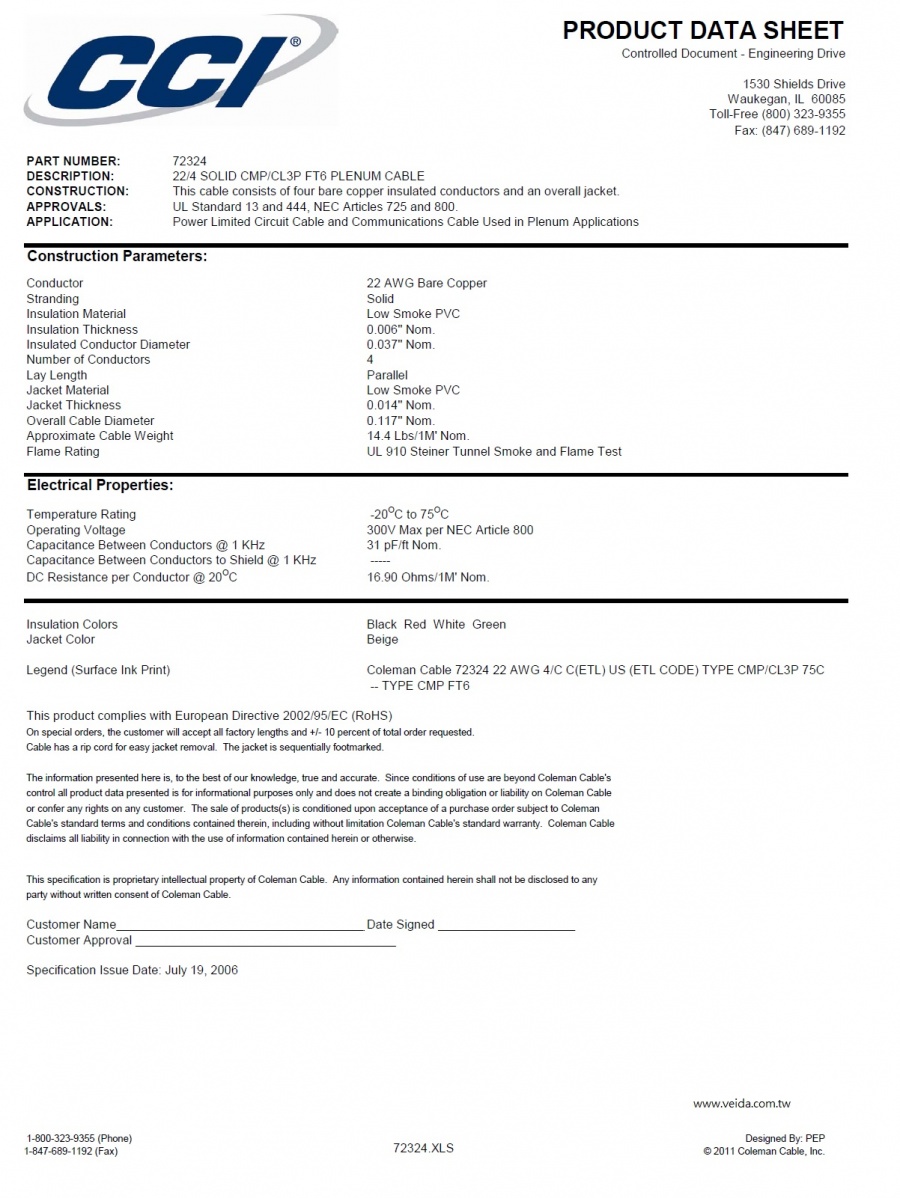

PART NUMBER: 72324

DESCRIPTION: 22/4 SOLID CMP/CL3P FT6 PLENUM CABLE

CONSTRUCTION: This cable consists of four bare copper insulated conductors and an overall jacket.

APPROVALS: UL Standard 13 and 444, NEC Articles 725 and 800.

APPLICATION: Power Limited Circuit Cable and Communications Cable Used in Plenum Applications

Construction Parameters:

Conductor 22 AWG Bare Copper

Stranding Solid

Insulation Material Low Smoke PVC

Insulation Thickness 0.006 Nom.

Insulated Conductor Diameter 0.037 Nom.

Number of Conductors 4

Lay Length Parallel

Jacket Material Low Smoke PVC

Jacket Thickness 0.014 Nom.

Overall Cable Diameter 0.117 Nom.

Approximate Cable Weight 14.4 Lbs/1M Nom.

Flame Rating UL 910 Steiner Tunnel Smoke and Flame Test

Electrical Properties:

Temperature Rating -20OC to 75OC

Operating Voltage 300V Max per NEC Article 800

Capacitance Between Conductors @ 1 KHz 31 pF/ft Nom.

Capacitance Between Conductors to Shield @ 1 KHz -----

DC Resistance per Conductor @ 20OC 16.90 Ohms/1M Nom.

Insulation Colors Black Red White Green

Jacket Color Beige
