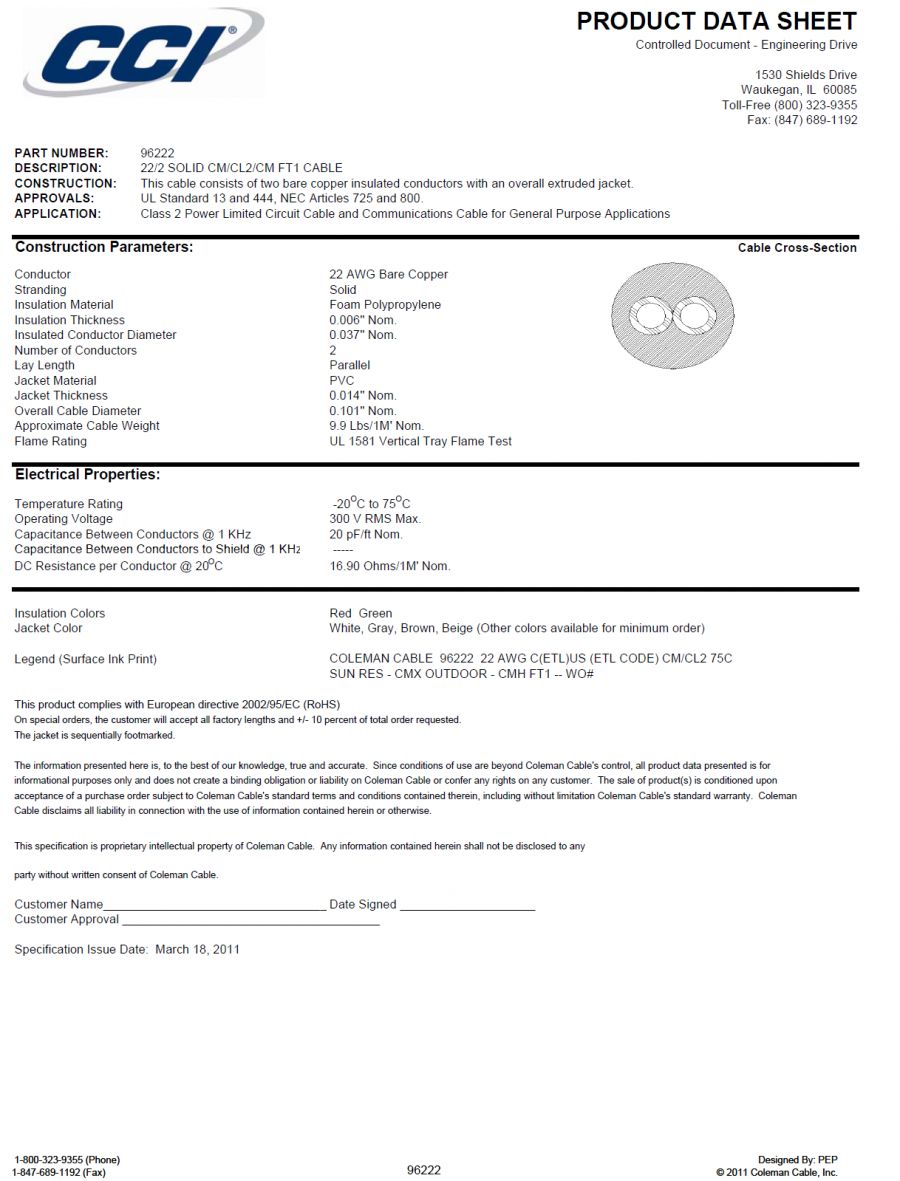

PART NUMBER: 96222
DESCRIPTION: 22/2 SOLID CM/CL2 CMH FT1 CABLE
CONSTRUCTION: This cable consist of two bare copper insulated conductors with an overall extruded jacket.
APPROVALS: UL Standard 13 and 444, NEC Article 725 and 800
APPLICATION: Class 2 Power Limited Circuit Cable, Communications Cable, for General Purpose Applications.
Construction Parameters:
Conductor: 22 AWG Bare Copper
Stranding: Solid
Insulation Material:Foam Polypropylene
Insulation Thickness:0.006" Nom.
Insulated Conductor Diameter:0.037" Nom.
Number of Conductors: 2
Lay Length:Parallel
Jacket Material: PVC
Jacket Thickness:0.014" Nom.
Overall Cable Diameter:0.101" Nom.
Approximate Cable Weight: 9.9 Lbs/1M Nom.
Flame Rating: UL 1581 Vertical Tray Flame Test
Electrical Properties:
Temperature Rating:-20度to 75度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz: 20 Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz: ----.
DC Resistance per Conductor@20度: 16.90 Ohms/1M*Nom.
Insulation Colors: Red Green
Jacket Colors:Gray, White, Brown, Beige (other colors available for min order)
|
