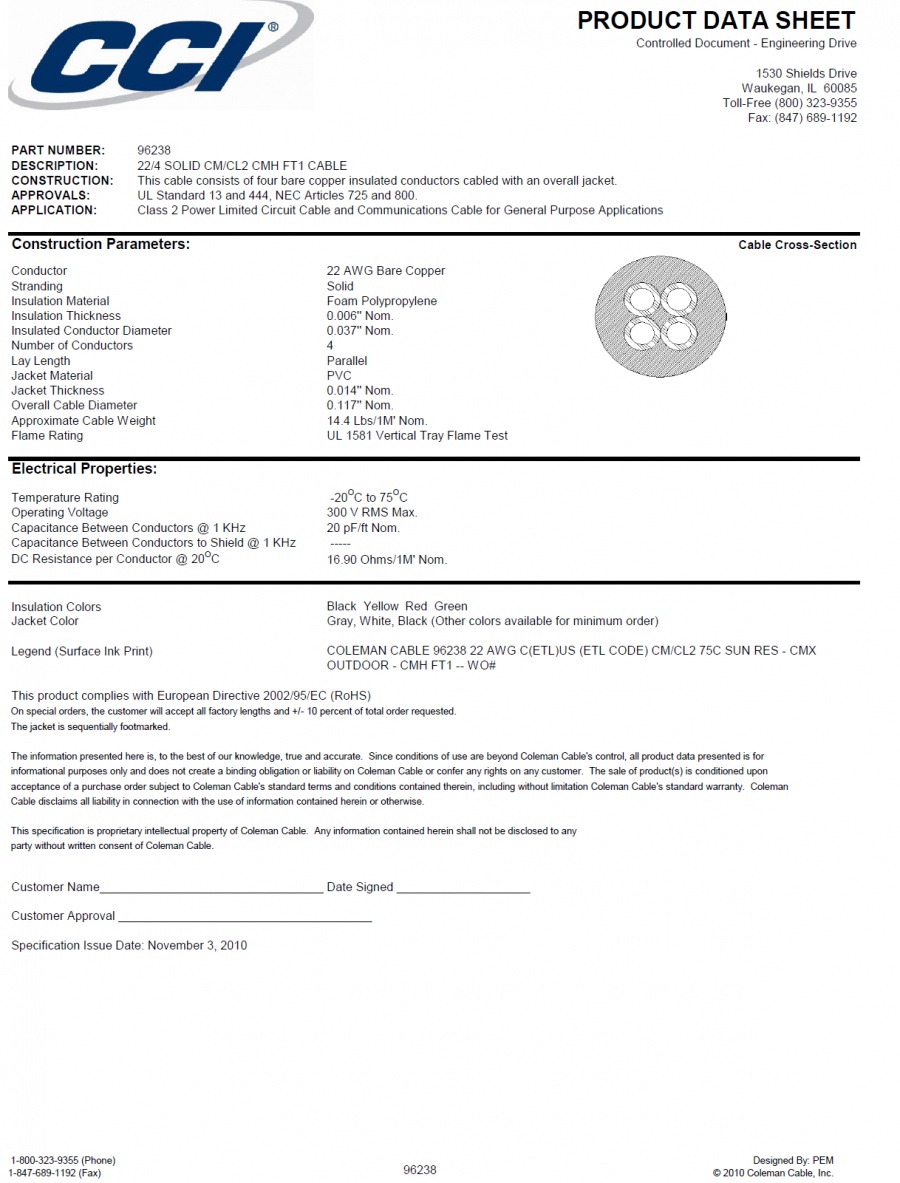

PART NUMBER: 96238

DESCRIPTION:  22/4 SOLID CM/CL2 CMH FT1 CABLE

CONSTRUCTION: This cable consist of four bare copper insulated conductors  with an overall jacket.

APPROVALS: UL Standard 13 and 444, NEC Article 725 and 800

APPLICATION: Class 2 Power Limited Circuit Cable, Communications Cable, for General Purpose Applications.

Construction Parameters:

Conductor: 22 AWG Bare Copper

Stranding: Solid

Insulation Material:Foam Polypropylene

Insulation Thickness:0.006" Nom.

Insulated Conductor Diameter:0.037" Nom.

Number of Conductors: 4

Lay Length:Parallel

Jacket Material:  PVC

Jacket Thickness:0.014" Nom.

Overall Cable Diameter:0.117" Nom.

Approximate Cable Weight: 14.4 Lbs/1M Nom.

Flame Rating: UL 1581 Vertical Tray Flame Test

Electrical Properties:

Temperature Rating:-20度to 75度

Operating Voltage:300V RMS Max

Capacitance Between Conductors@1KHz: 20 Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz: ----.

DC Resistance per Conductor@20度: 16.90 Ohms/1M*Nom.

Insulation Colors:Black Yellow Red Green

Jacket Colors:Gray, White, Black (other colors available for min order)
