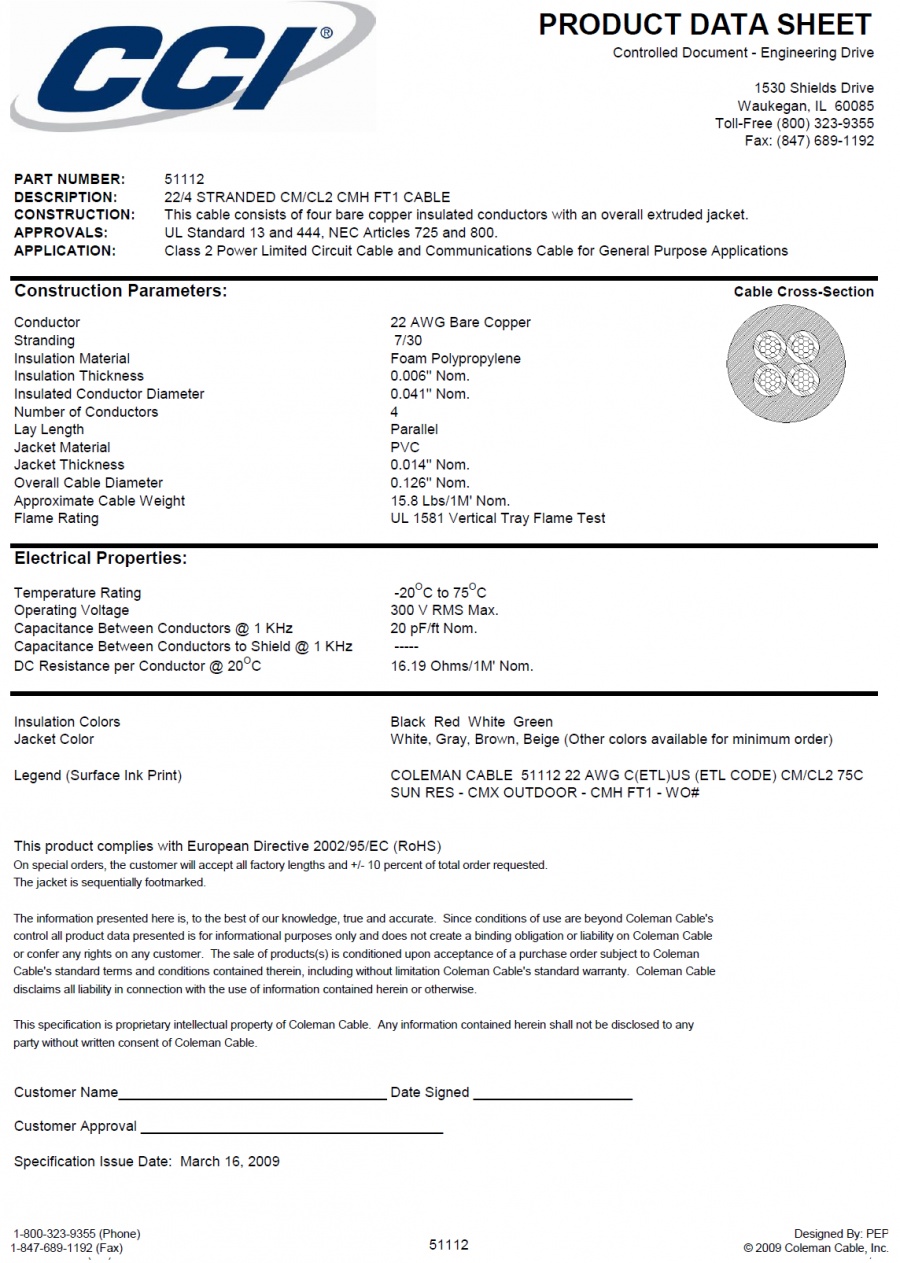

PART NUMBER: 51112
DESCRIPTION: 22/4 STRANDED CM/CL2 CMH FT1 CABLE
CONSTRUCTION: This cable consist of four bare copper insulated conductors with an overall extruded jacket.
APPROVALS: UL Standard 13 and 444, NEC Article 725 and 800.
APPLICATION: Class 2 Power Limited Circuit Cable and Communications Cable for General Purpose Applications.
Construction Parameters:
Conductor: 22 AWG Bare Copper
Stranding: 7/30
Insulation Material:Foam Polypropylene
Insulation Thickness:0.006" Nom.
Insulated Conductor Diameter:0.041" Nom.
Number of Conductors: 4
Lay Length:Parallel
Jacket Material: PVC
Jacket Thickness:0.014" Nom.
Overall Cable Diameter:0.126" Nom.
Approximate Cable Weight: 15.8 Lbs/1M Nom.
Flame Rating: UL 1581 Vertical Tray Flame Test
Electrical Properties:
Temperature Rating:-20度to 75度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz: 20 Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz: ----.
DC Resistance per Conductor@20度: 16.19 Ohms/1M*Nom.
Insulation Colors:Black Red Green White
Jacket Colors:White Gray Brown Beige (other colors available for min order)
|
