商品編號: CCI-81602

CCI81602 Fire Alarm 16/2 SOLID BC FPLP Cables – Unshielded – Plenum Type FPLP Awg16x 2C 低煙型火災警報訊號傳輸線


81602 - 16/2 SOLID BC FPLP
	Fire Alarm Multi-Conductor Cables – Unshielded – Plenum Type FPLP Features: Low Smoke PVC jacket 　 Temperature rating 75°C 　 High speed dispensing system (pullout boxes) 　 Applications: Power limited fire alarm and communications cable for plenum applications. Fire alarm, smoke detectors, signaling, fire protective circuits. Industry Approvals: UL Type FPLP NEC Article 760 cUL Type CMP/FT6 California State Fire Marshall

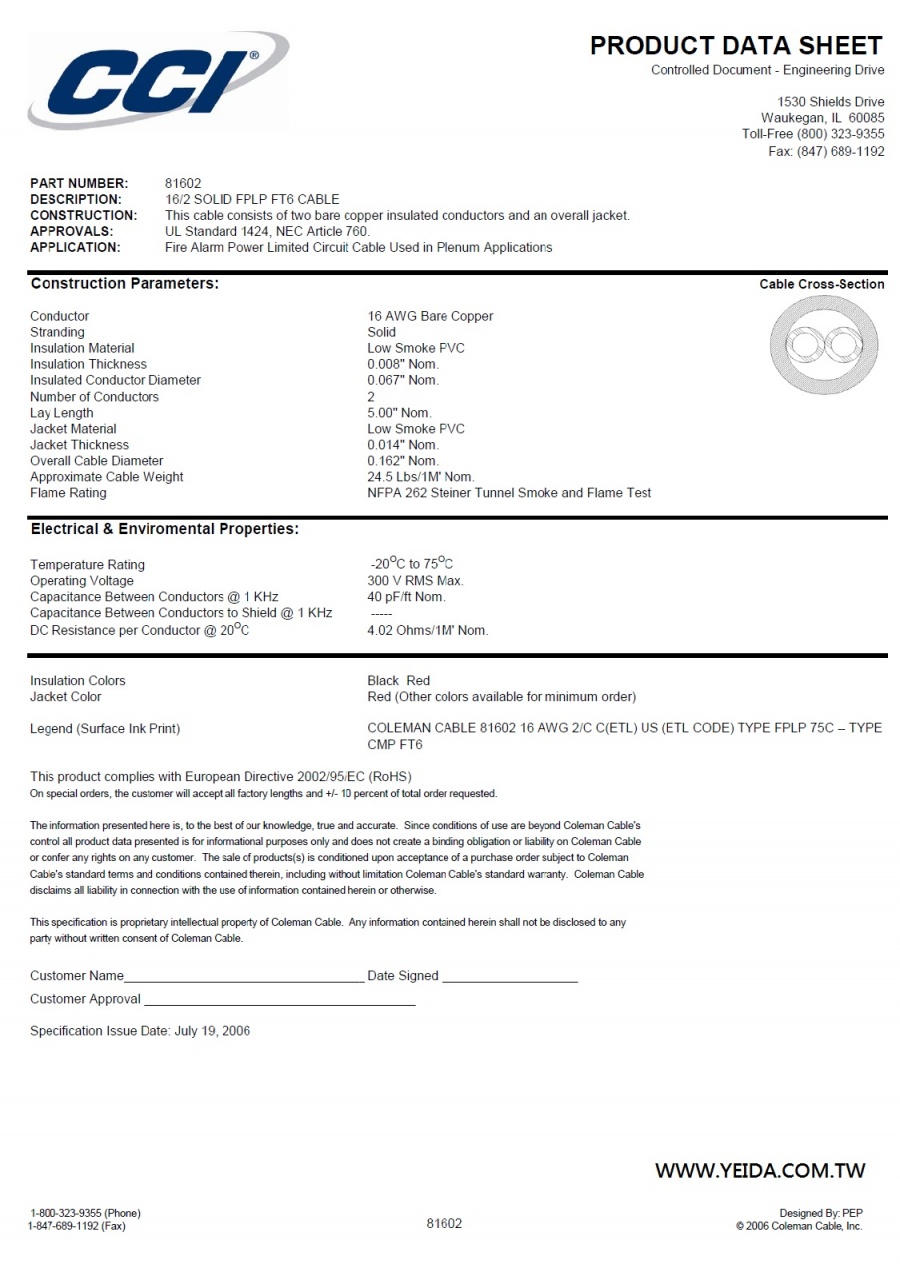

PART NUMBER: 81602

DESCRIPTION: 16/2 SOLID FPLP FT6 CABLE

CONSTRUCTION: This cable consists of two bare copper insulated conductors and an overall jacket.

APPROVALS: UL Standard 1424, NEC Article 760.

APPLICATION: Fire Alarm Power Limited Circuit Cable Used in Plenum Applications

Construction Parameters:

Conductor                                                       16 AWG Bare Copper

Stranding                                                        Solid

Insulation Material                                          Low Smoke PVC

Insulation Thickness                                       0.008 Nom.

Insulated Conductor Diameter                        0.067 Nom.

Number of Conductors                                    2

Lay Length                                                      5.00" Nom.

Jacket Material                                               Low Smoke PVC

Jacket Thickness                                             0.014 Nom.

Overall Cable Diameter                                   0.162 Nom.

Approximate Cable Weight                             24.5 Lbs/1M Nom.

Flame Rating                                                   NFPA 262 Steiner Tunnel Smoke and Flame Test

Electrical Properties:

Temperature Rating                                                         -20度to 75度

Operating Voltage                                                            300V RMS Max

Capacitance Between Conductors@1KHz                         40Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz          ----

DC Resistance per Conductor@20度                                 4.02 Ohms/1M*Nom.

Insulation Colors                                                Black Red Green Yellow

Jacket Colors                                                     Red (other colors available for min order)

Legend (Surface Ink Print)                                 COLEMAN CABLE 81602 16 AWG 4/C C(ETL)US

                                                                          -TYPE CMP FT6
