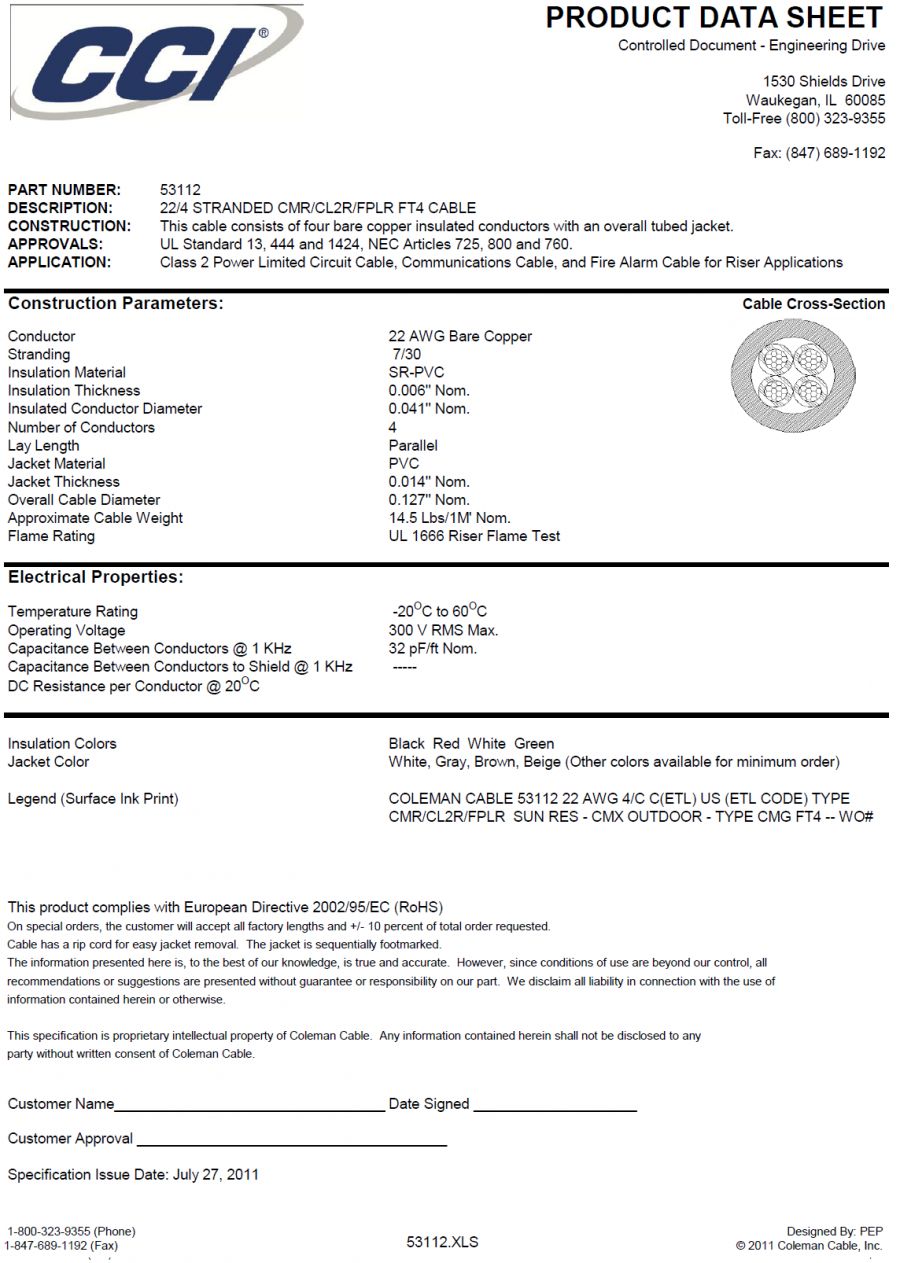

PART NUMBER: 53112

DESCRIPTION: 22/4 STRANDED CMR/CL2R/FPLR FT4 CABLE

CONSTRUCTION: This cable consists of four bare copper insulated conductors with an overall tubed jacket.

APPROVALS: UL Standard 13 and 444 and 1424, NEC Article 725 and 800 and 760

APPLICATION: Class 2 Power Limited Circuit Cable and Communications Cable and Fire Alarm Cable for Riser Applications

Construction Parameters:

Conductor: 22 AWG Bare Copper

Stranding: 7/30

Insulation Material: SR-PVC

Insulation Thickness: 0.006" Nom.

Insulated Conductor Diameter: 0.041" Nom.

Number of Conductors: 4

Lay Length: Parallel

Jacket Material: PVC

Jacket Thickness: 0.014" Nom.

Overall Cable Diameter: 0.127" Nom.

Approximate Cable Weight: 14.5 Lbs/1M Nom.

Flame Rating: UL 1666 Riser Flame Test

Electrical Properties:

Temperature Rating: -20度 to 60度

Operating Voltage: 300V RMS Max

Capacitance Between Conductors@1KHz: 32 Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz: ------.

Insulation Colors: Black Red White Green

Jacket Colors: White, Gray, Brown, Beige (other colors available for min order)

Legend (Surface Ink Print): COLEMAN CABLE 53112 22 AWG 4/C C(ETL) US (ETL CODE) TYPE CMR/CL2R/FPLR SUN RES-CMX OUTDOOR-TYPE CMG FT4-WO#
