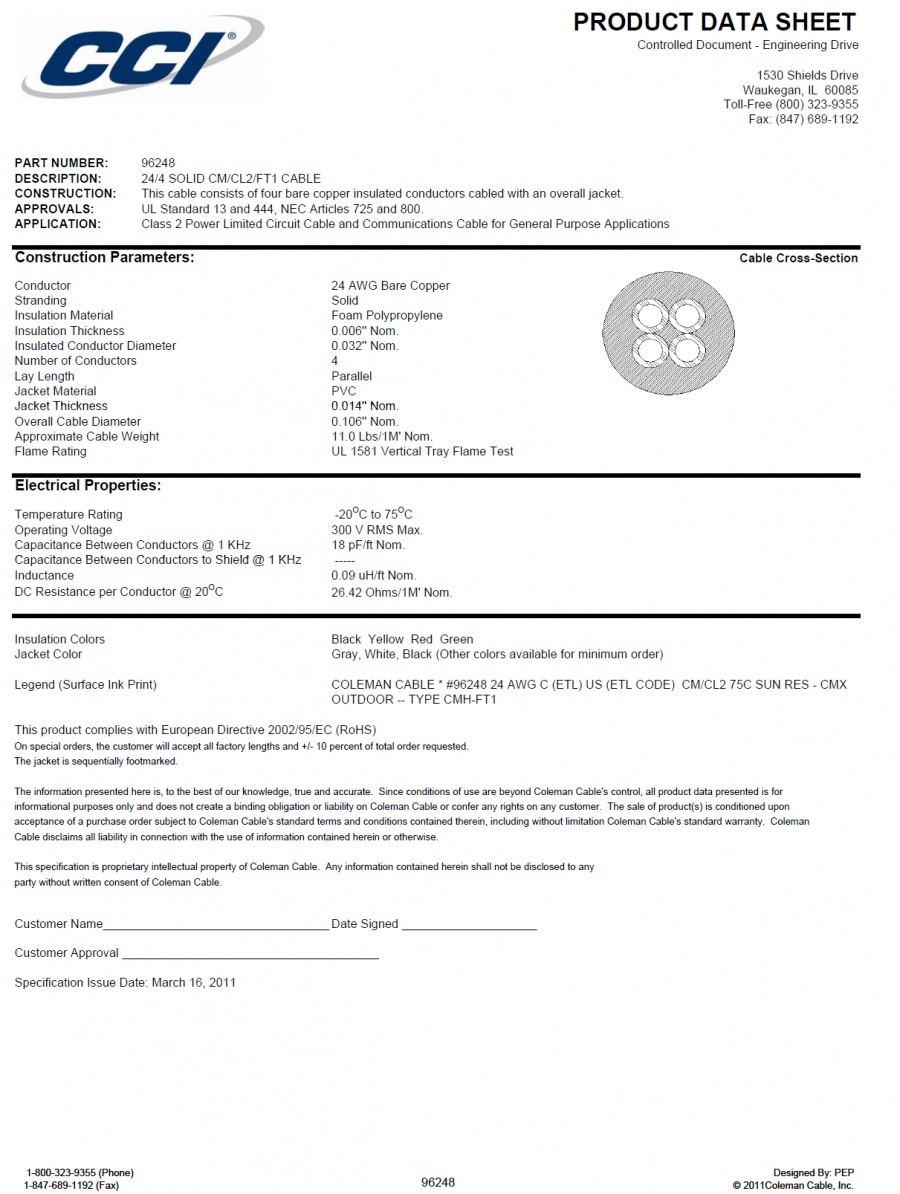

PART NUMBER: 96248

DESCRIPTION: 24/4 SOLID CM/CL2/FT1 CABLE

CONSTRUCTION: This cable consists of four bare copper insulated conductors cable

APPROVALS: UL Standard 13 and 444, NEC Article 725 and 800

APPLICATION:Class 2 Power Limited Circuit Cable and Communications Cable for General Purpose Applications

Construction Parameters:

Conductor: 24 AWG Bare Copper

Stranding:Solid

Insulation Material:Foam Polypropylene

Insulation Thickness:0.006" Nom.

Insulated Conductor Diameter:0.032" Nom.

Number of Conductors: 4

Lay Length: Parallel

Jacket Material: PVC

Jacket Thickness:0.014 Nom.

Overall Cable Diameter:0.106 Nom.

Approximate Cable Weight: 11.0 Lbs/1M Nom.

Flame Rating: UL 1581 Vertical Tray Flame Test

Electrical Properties:

Temperature Rating:-20度to 75度

Operating Voltage:300V RMS Max

Capacitance Between Conductors@1KHz:18Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz: ------.

Inductance: 0.09 uH/ft Nom.

DC Resistance per Conductor@20度:26.42 Ohms/1M*Nom.

Insulation Colors:Black Yellow Red Green

Jacket Colors:Grey, White, Black (other colors available for min order)

Legend (Surface Ink Print): COLEMAN CABLE 96248 24 AWG C (ETL) US (ETL CODE) CM/CL2 75C SUN RES- CMX OUTDOOR - TYPE CMH-FH1
