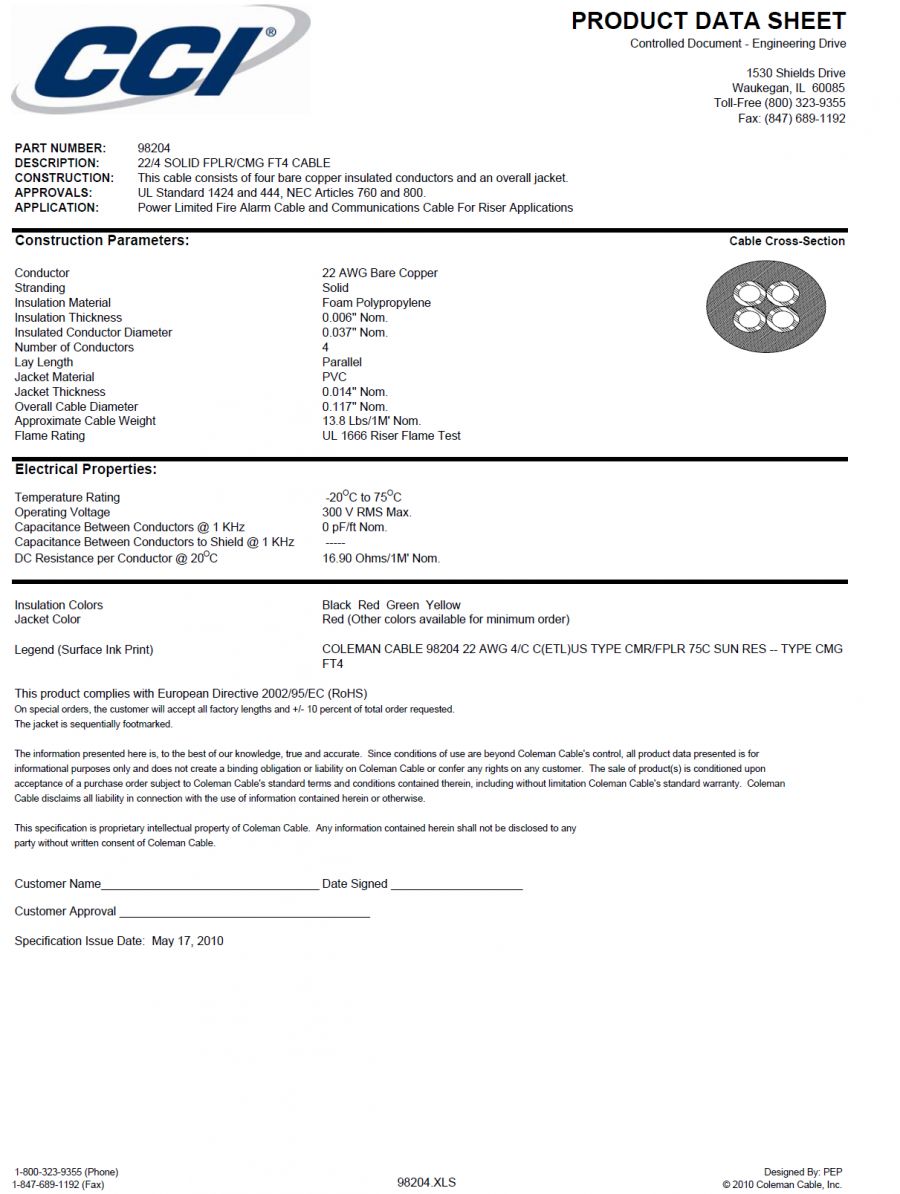

PART NUMBER: 98204
DESCRIPTION: 22/74 SOLID FPLP/CMG FT4 CABLE
CONSTRUCTION: This cable consists of four bare copper insulated conductors and an overall jacket.
APPROVALS: UL Standard 1424 and 444, NEC Article 760 and 800
APPLICATION: Power Limited Fire Alarm Cable and Communications Cable Four Riser Applications.
Construction Parameters:
Conductor: 22 AWG Bare Copper
Stranding:Solid
Insulation Material:Foam Polypropylene
Insulation Thickness:0.006" Nom.
Insulated Conductor Diameter:0.037" Nom.
Number of Conductors: 4
Lay Length: Parallel.
Jacket Material: PVC
Jacket Thickness:0.014" Nom.
Overall Cable Diameter:0.117" Nom.
Approximate Cable Weight: 13.8 Lbs/1M Nom.
Flame Rating: UL 1666 Riser Flame Test
Electrical Properties:
Temperature Rating:-20度to 75度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz:0 Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz:---
DC Resistance per Conductor@20度:16.90 Ohms/1M*Nom.
Insulation Colors:Black Red Green Yellow
Jacket Colors:Red (other colors available for min order)
|
