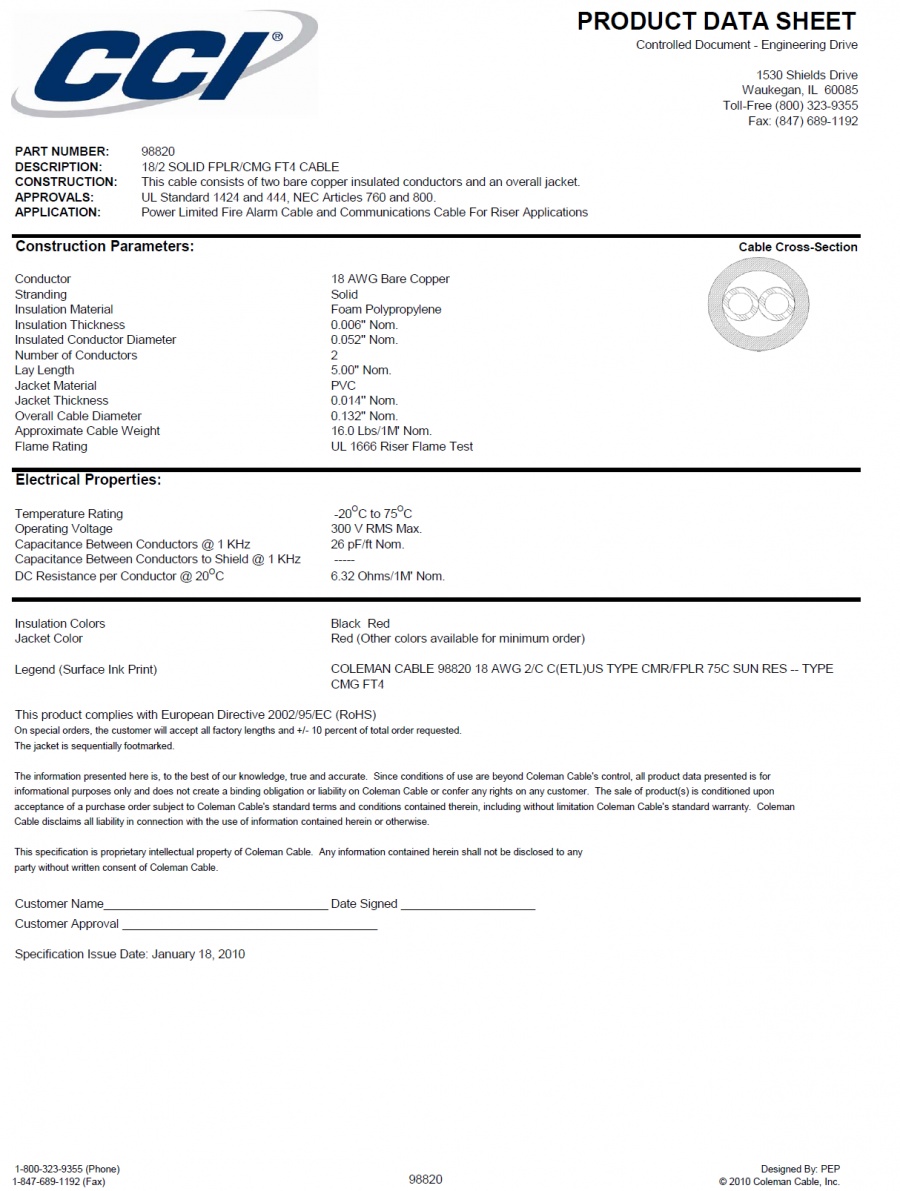

PART NUMBER: 98820

DESCRIPTION: 18/2SOLID FPLR/CMG FT4 CABLE

CONSTRUCTION: This cable consists of two bare copper insulated conductors and an overall jacket.

APPROVALS: UL Standard 1424 and 444, NEC Article 760 and 800

APPLICATION:Power Limited Fire Alarm Cable and Communications Cable For Riser Applications

Construction Parameters:

Conductor: 18 AWG Bare Copper

Stranding:Solid

Insulation Material:Foam Polypropylene

Insulation Thickness:0.006 Nom.

Insulated Conductor Diameter:0.052 Nom.

Number of Conductors:2

Lay Length:5.00 Nom.

Jacket Material: PVC

Jacket Thickness:0.014 Nom.

Overall Cable Diameter:0.132 Nom.

Approximate Cable Weight: 16.0 Lbs/1M Nom.

Flame Rating: UL 1666 Riser Flame Test

Electrical Properties:

Temperature Rating:-20度to 75度

Operating Voltage:300V RMS Max

Capacitance Between Conductors@1KHz:26Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz: ------.

DC Resistance per Conductor@20度:6.32 Ohms/1M*Nom.

Insulation Colors:Black Red

Jacket Colors:Red (other colors available for min order)

Legend (Surface Ink Print): COLEMAN CABLE 98820 18 AWG 2/C C(ETL)US TYPE CMR/FPLR 75C SUN RES - TYPE CMG FT4
