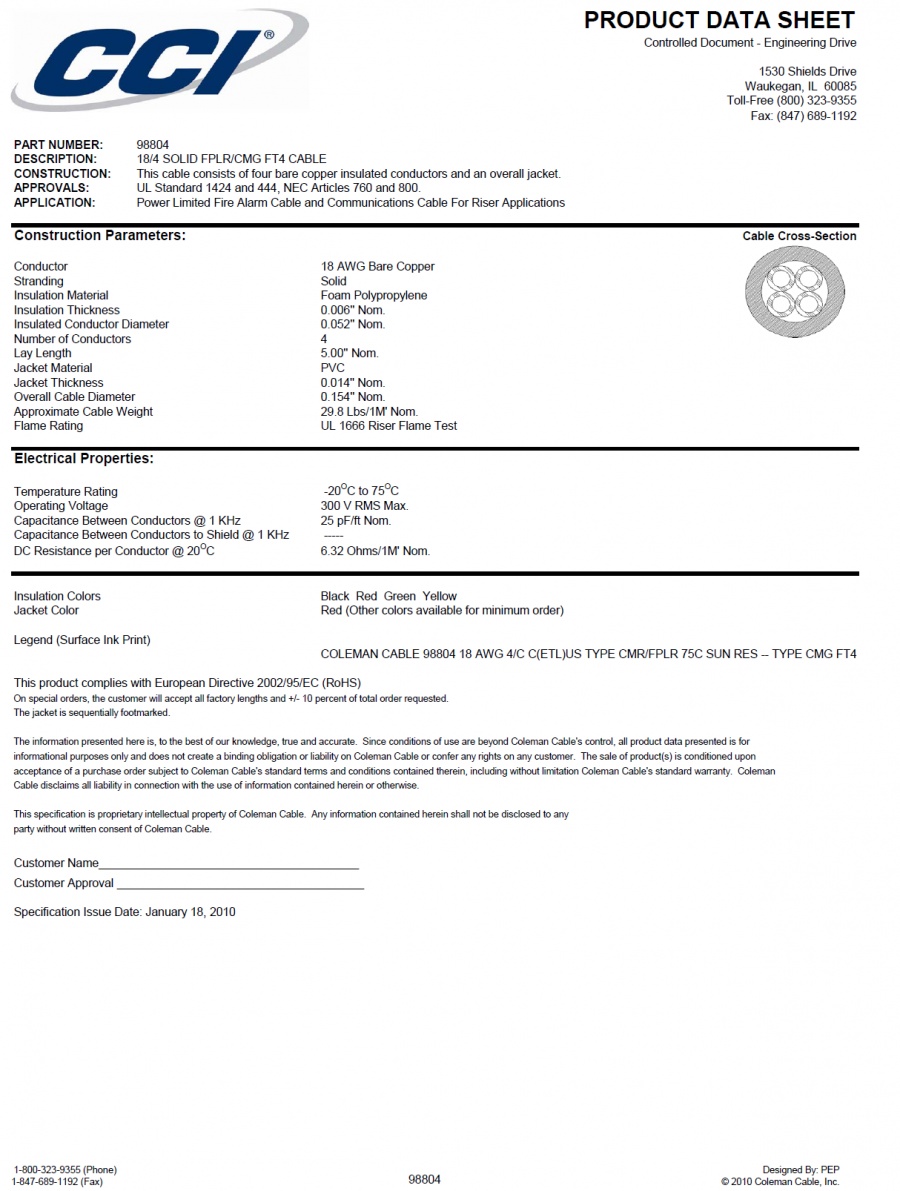

PART NUMBER: 98804
DESCRIPTION: 18/4 SOLID FPLP/CMG FT4 CABLE
CONSTRUCTION: This cable consists of four bare copper insulated conductors and an overall jacket.
APPROVALS: UL Standard 1424 and 444, NEC Article 760 and 800
APPLICATION: Power Limited Fire Alarm Cable and Communications Cable For Riser Applications
Construction Parameters:
Conductor: 18 AWG Bare Copper
Stranding:Solid
Insulation Material:Foam Polypropylene
Insulation Thickness:0.006" Nom.
Insulated Conductor Diameter:0.052" Nom.
Number of Conductors: 4
Lay Length:5.00 Nom.
Jacket Material: PVC
Jacket Thickness:0.014 Nom.
Overall Cable Diameter:0.154 Nom.
Approximate Cable Weight: 29.8 Lbs/1M Nom.
Flame Rating: UL 1666 Riser Flame Test
Electrical Properties:
Temperature Rating:-20度to 75度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz:25Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz: ------.
DC Resistance per Conductor@20度:6.32 Ohms/1M*Nom.
Insulation Colors:Black Red Green Yellow
Jacket Colors:Red (other colors available for min order)
Legend (Surface Ink Print): COLEMAN CABLE 98804 18 AWG 4/C C(ETL)US TYPE CMR/FPLR 75C SUN RES - TYPE CMG FT4
|
