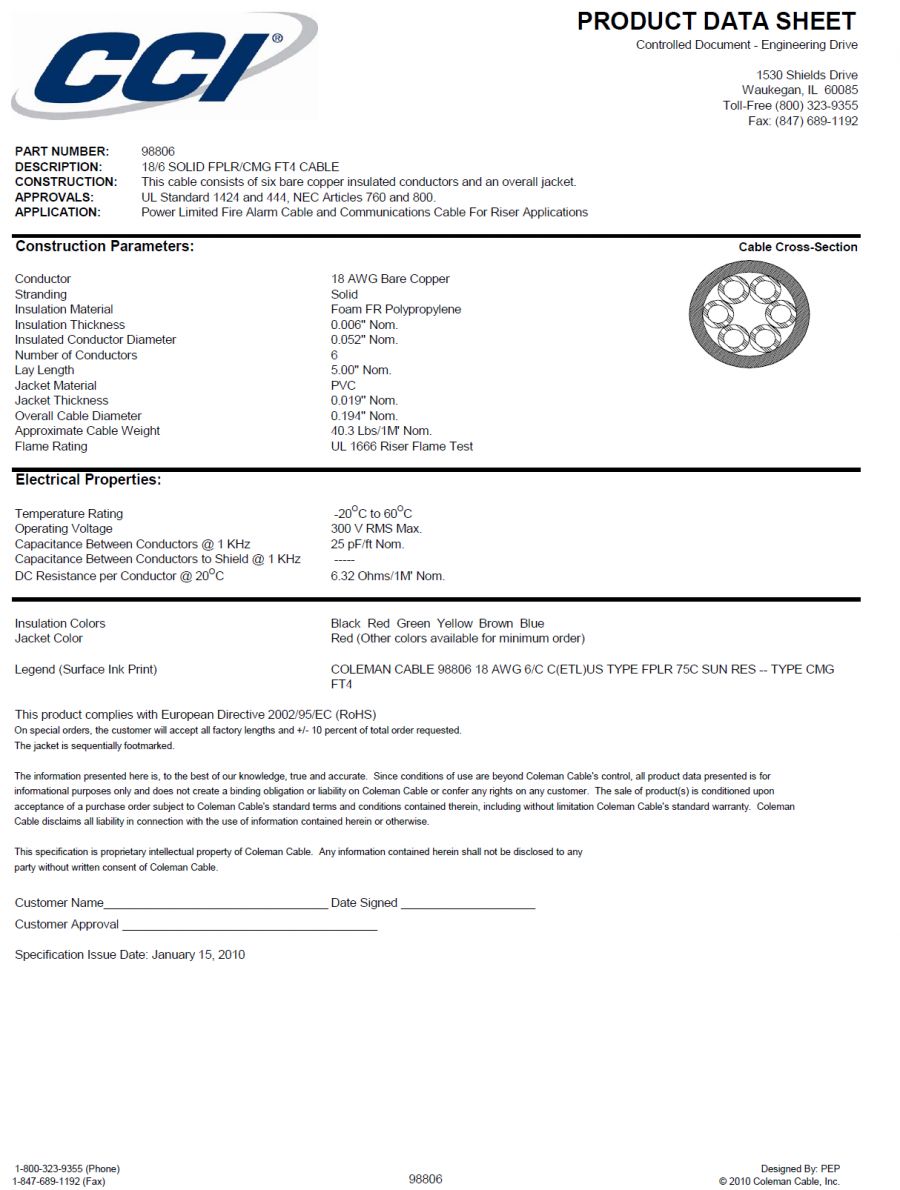

PART NUMBER: 98806

DESCRIPTION: 18/6 SOLID FPLP/CMG FT4 CABLE

CONSTRUCTION: This cable consists of six bare copper insulated conductors and an overall jacket.

APPROVALS: UL Standard 1424 and 444, NEC Article 760 and 800

APPLICATION: Power Limited Fire Alarm Cable and Communications Cable For Riser Applications

Construction Parameters:

Conductor: 18 AWG Bare Copper

Stranding: Solid

Insulation Material: Foam FR Polypropylene

Insulation Thickness: 0.006" Nom.

Insulated Conductor Diameter: 0.052" Nom.

Number of Conductors: 6

Lay Length: 5.00" Nom.

Jacket Material: PVC

Jacket Thickness: 0.019 Nom.

Overall Cable Diameter: 0.194 Nom.

Approximate Cable Weight: 40.3 Lbs/1M Nom.

Flame Rating: UL 1666 Riser Flame Test

Electrical Properties:

Temperature Rating: -20度 to 60度

Operating Voltage: 300V RMS Max

Capacitance Between Conductors@1KHz: 25 Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz: ------.

DC Resistance per Conductor@20度: 6.32 Ohms/1M*Nom.

Insulation Colors: Black Red Green Yellow Brown Blue

Jacket Colors: Red (other colors available for min order)

Legend (Surface Ink Print): COLEMAN CABLE 98806 18 AWG 6/C C(ETL)US TYPE CMR/FPLR 75C SUN RES - TYPE CMG FT4
