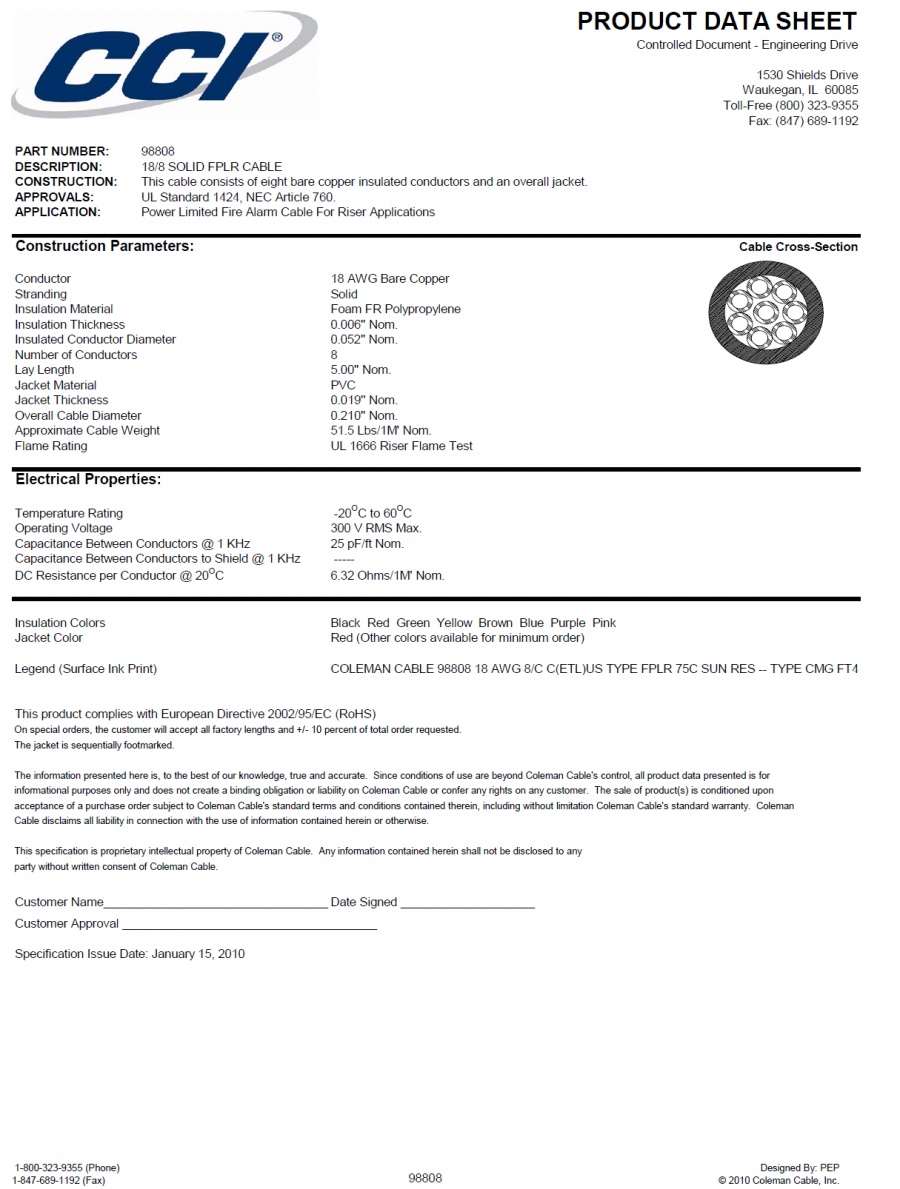

PART NUMBER: 98808
DESCRIPTION: 18/8 SOLID FPLR CABLE
CONSTRUCTION: This cable consists of eight bare copper insulated conductors and an overall jacket.
APPROVALS: UL Standard 1424, NEC Article 760.
APPLICATION: Power Limited Fire Alarm Cable and Communications Cable For Riser Applications
Construction Parameters:
Conductor: 18 AWG Bare Copper
Stranding:Solid
Insulation Material:Foam FR Polypropylene
Insulation Thickness:0.006" Nom.
Insulated Conductor Diameter:0.052" Nom.
Number of Conductors:8
Lay Length: 5.00" Nom.
Jacket Material: PVC
Jacket Thickness:0.019 Nom.
Overall Cable Diameter:0.210" Nom.
Approximate Cable Weight:51.5 Lbs/1M Nom.
Flame Rating: UL 1666 Riser Flame Test
Electrical Properties:
Temperature Rating:-20度to 60度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz:25Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz: ------.
DC Resistance per Conductor@20度:6.32 Ohms/1M*Nom.
Insulation Colors:Black Red Green Yellow Brown Blue Purple Pink
Jacket Colors:Red (other colors available for min order)
|
