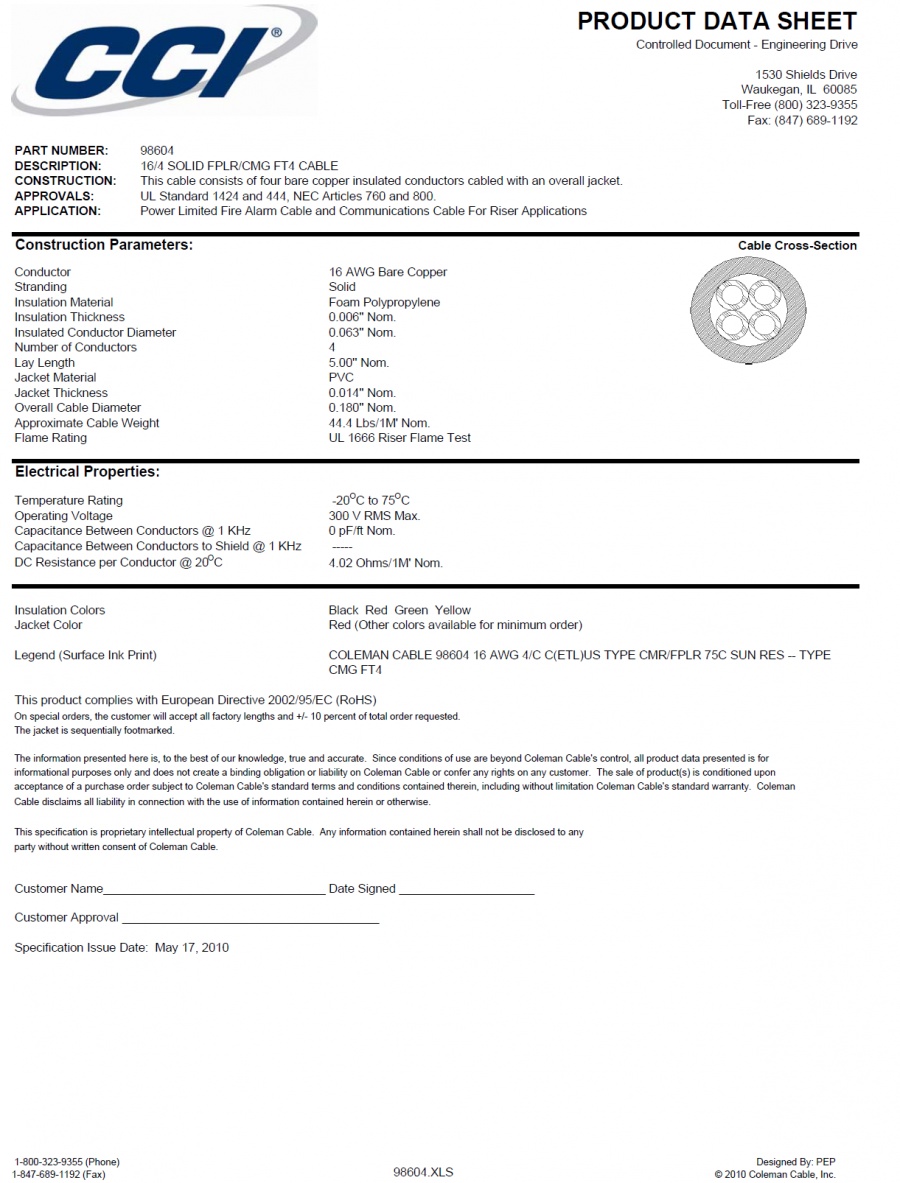

PART NUMBER: 98604
DESCRIPTION: 16/4SOLID SHIELDED FPKR
CONSTRUCTION: This cable consist of four bare copper insulated conductors with an overall jacket.
APPROVALS: UL Standard 1424 and 444, NEC Article 760 and 800
APPLICATION: Power Limited Fire Alarm Cable and Communications Cable Four Riser Applications.
Construction Parameters:
Conductor: 16 AWG Bare Copper
Stranding:Solid
Insulation Material:Foam Polypropylene
Insulation Thickness:0.006" Nom.
Insulated Conductor Diameter:0.063" Nom.
Number of Conductors: 4
Lay Length: 5.00" Nom.
Jacket Material: PVC
Jacket Thickness:0.014" Nom.
Overall Cable Diameter:0.180" Nom.
Approximate Cable Weight:44.4 Lbs/1M Nom.
Flame Rating: UL 1666 Riser Flame Test
Electrical Properties:
Temperature Rating:-20度to 75度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz: 0Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz: ----.
DC Resistance per Conductor@20度:4.02 Ohms/1M*Nom.
Insulation Colors:Black Red Green Yellow
Jacket Colors:Red (other colors available for min order)
|
