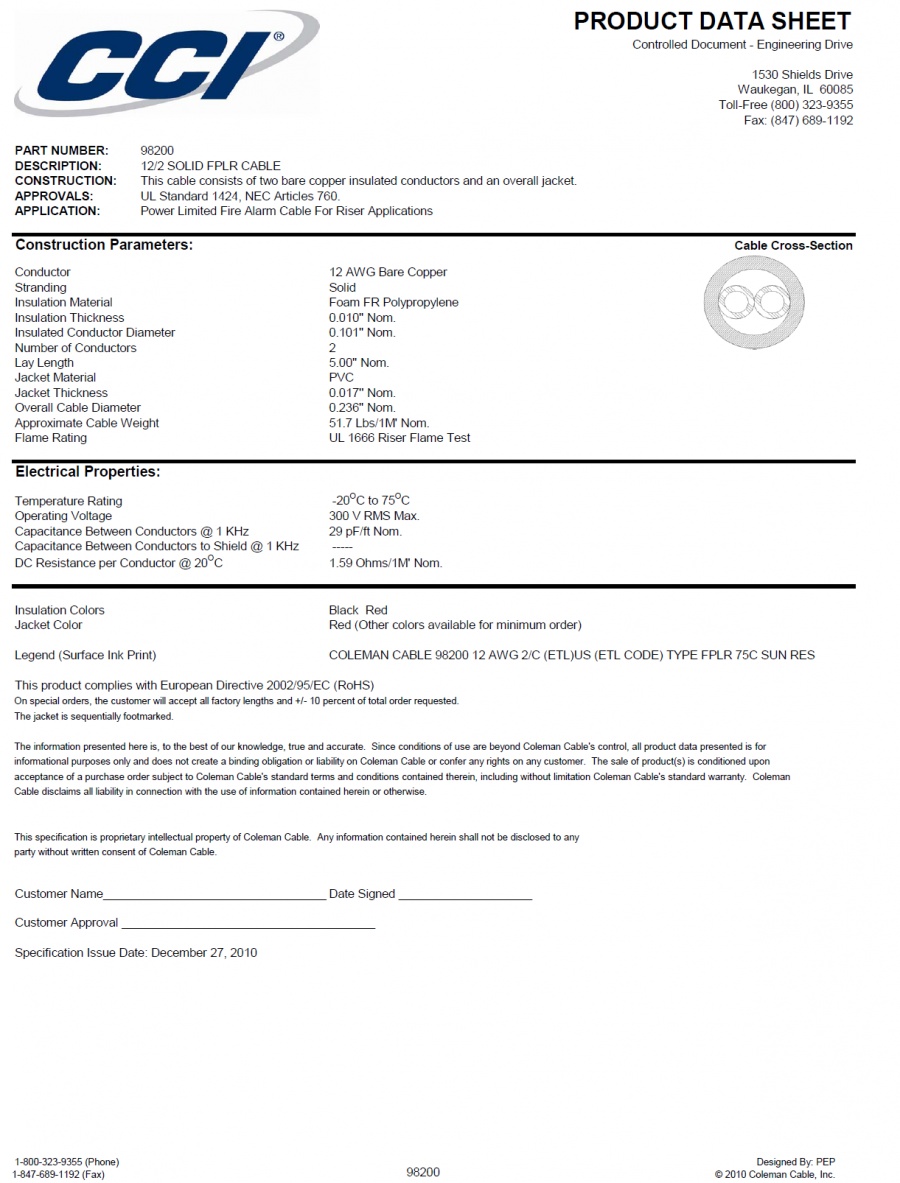

PART NUMBER: 98200
DESCRIPTION: 12/2 SOLID FPLR CABLE
CONSTRUCTION: This cable consists of two bare copper insulated conductors with an overall jacket.
APPROVALS: UL Standard 1424, NEC Article 760.
APPLICATION: Power Limited Fire Alarm Cable for Riser Applications
Construction Parameters:
Conductor: 12 AWG Bare Copper
Stranding: Solid
Insulation Material:Foam FR Polypropylene
Insulation Thickness:0.010" Nom.
Insulated Conductor Diameter:0.101" Nom.
Number of Conductors: 2
Lay Length:5.00 Nom.
Jacket Material: PVC
Jacket Thickness:0.017" Nom.
Overall Cable Diameter:0.236" Nom.
Approximate Cable Weight:51.7 Lbs/1M Nom.
Flame Rating: UL 1666 Riser Flame Test
Electrical Properties:
Temperature Rating:-20度to 75度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz:29Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz:------..
DC Resistance per Conductor@20度: 1.59 Ohms/1M Nom.
Insulation Colors:Black Red
Jacket Colors:Red (other colors available for min order)
|
