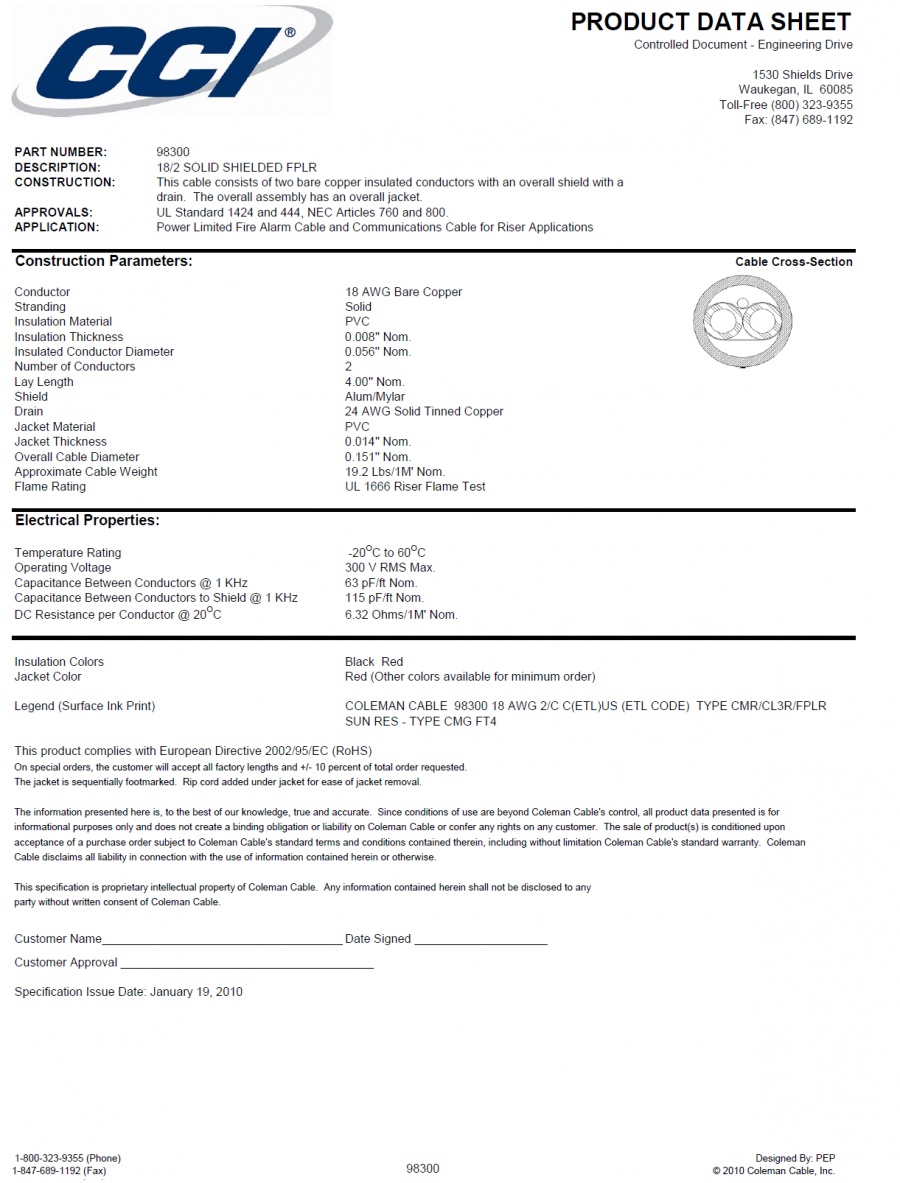

PART NUMBER: 98300

DESCRIPTION: 18/2 SOLID SHIELDED FPLR

CONSTRUCTION: This cable consists of two bare copper insulated conductors with an overall shield with a drain. The overall assembly has an overall jacket.

APPROVALS: UL Standard 1424 and 444, NEC Article 760 and 800

APPLICATION:  Power Limited Fire Alarm Cable and Communication Cable for Riser Applications

Construction Parameters:

Conductor: 18 AWG Bare Copper

Stranding: Solid

Insulation Material:PVC

Insulation Thickness:0.008" Nom.

Insulated Conductor Diameter:0.056" Nom.

Number of Conductors: 2

Lay Length:4.00 Nom.

Shield:  Alum/Mylar

Drain:  24 AWG Solid Tinned Copper

Jacket Material: PVC

Jacket Thickness:0.014" Nom.

Overall Cable Diameter:0.151" Nom.

Approximate Cable Weight: 19.2 Lbs/1M Nom.

Flame Rating: UL 1666 Riser Flame Test

Electrical Properties:

Temperature Rating:-20度to 60度

Operating Voltage:300V RMS Max

Capacitance Between Conductors@1KHz:63Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz:115pF/ft Nom..

DC Resistance per Conductor@20度: 6.32 Ohms/1M Nom.

Insulation Colors:Black Red

Jacket Colors:Red (other colors available for min order)
