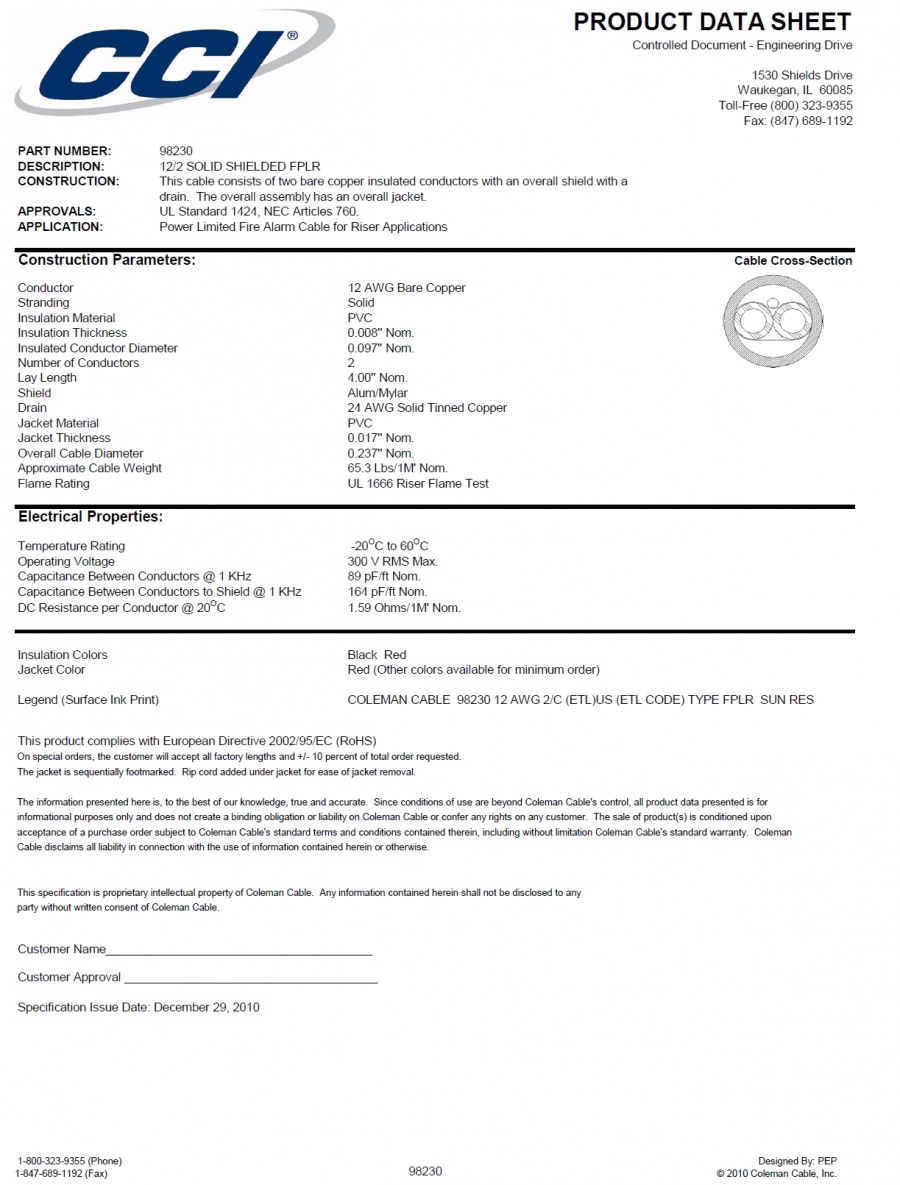

DESCRIPTION: 12/2 SOLID SHIELDED FPLR

CONSTRUCTION: This cable consists of two bare copper insulated conductors with an overall shield with a drain. The overall assembly has an overall jacket.

APPROVALS: UL Standard 1424, NEC Article 760

APPLICATION:Power Limited Fire Alarm Cable for Riser Applications

Construction Parameters:

Conductor: 12 AWG Bare Copper

Stranding: Solid

Insulation Material:PVC

Insulation Thickness:0.008" Nom.

Insulated Conductor Diameter:0.097" Nom.

Number of Conductors:2

Lay Length:4.00" Nom.

Shield: Alum/Mylar

Drain: 24 AWG Solid Tinned Copper

Jacket Material: PVC

Jacket Thickness:0.017" Nom.

Overall Cable Diameter:0.237" Nom.

Approximate Cable Weight: 65.3 Lbs/1M Nom.

Flame Rating: UL 1666 Riser Flame Test

Electrical Properties:

Temperature Rating:-20度to 60度

Operating Voltage:300V RMS Max

Capacitance Between Conductors@1KHz:89Pf/ft Nom.

Capacitance Between Conductors to shield@1KHz:164pF/ft Nom..

DC Resistance per Conductor@20度: 1.59 Ohms/1M Nom.

Insulation Colors:Black Red

Jacket Colors:Red (other colors available for min order)
