Application
A flexible, shielded power cable specifically
engineered for use in variable frequency
AC motor drive (VFD) applications.

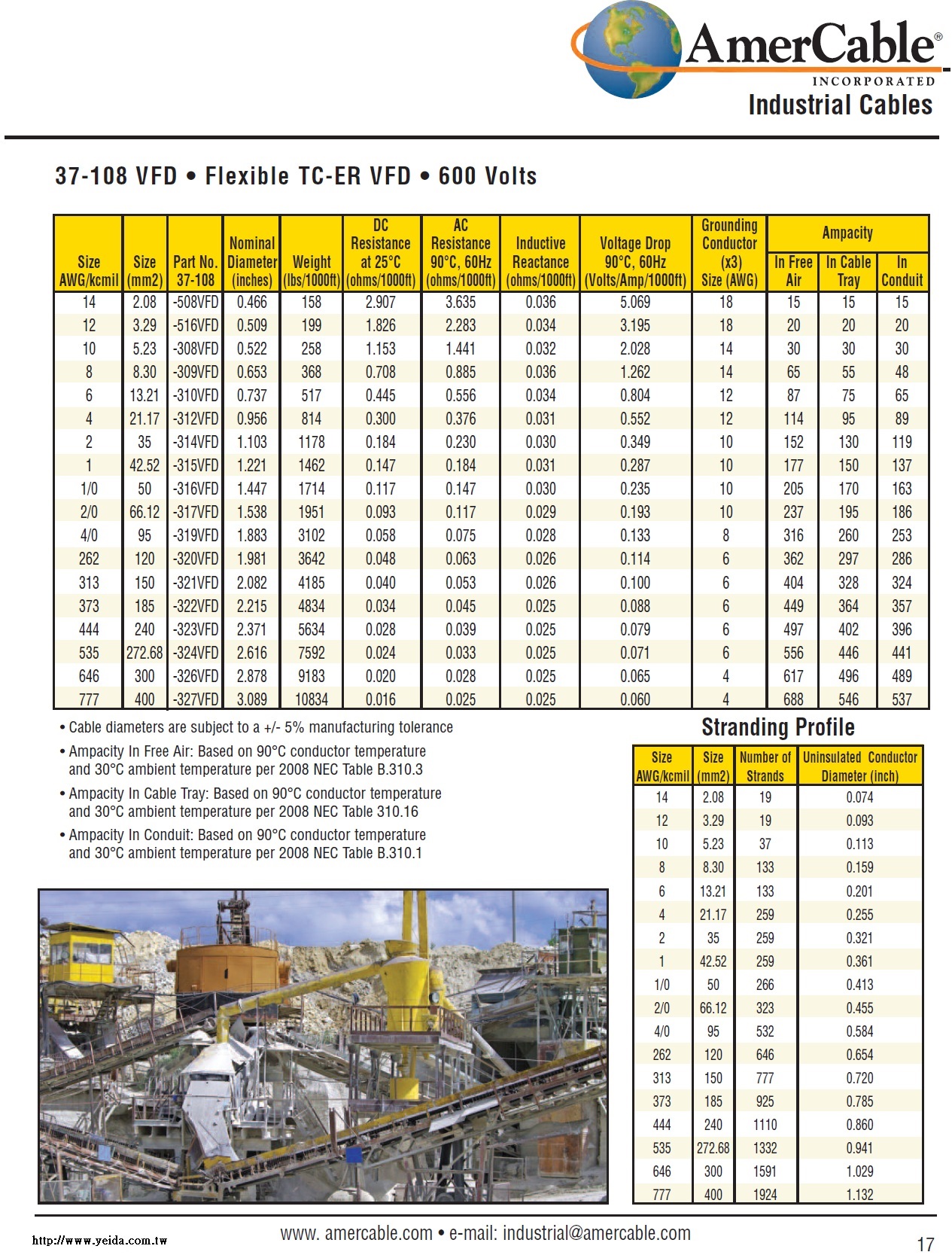

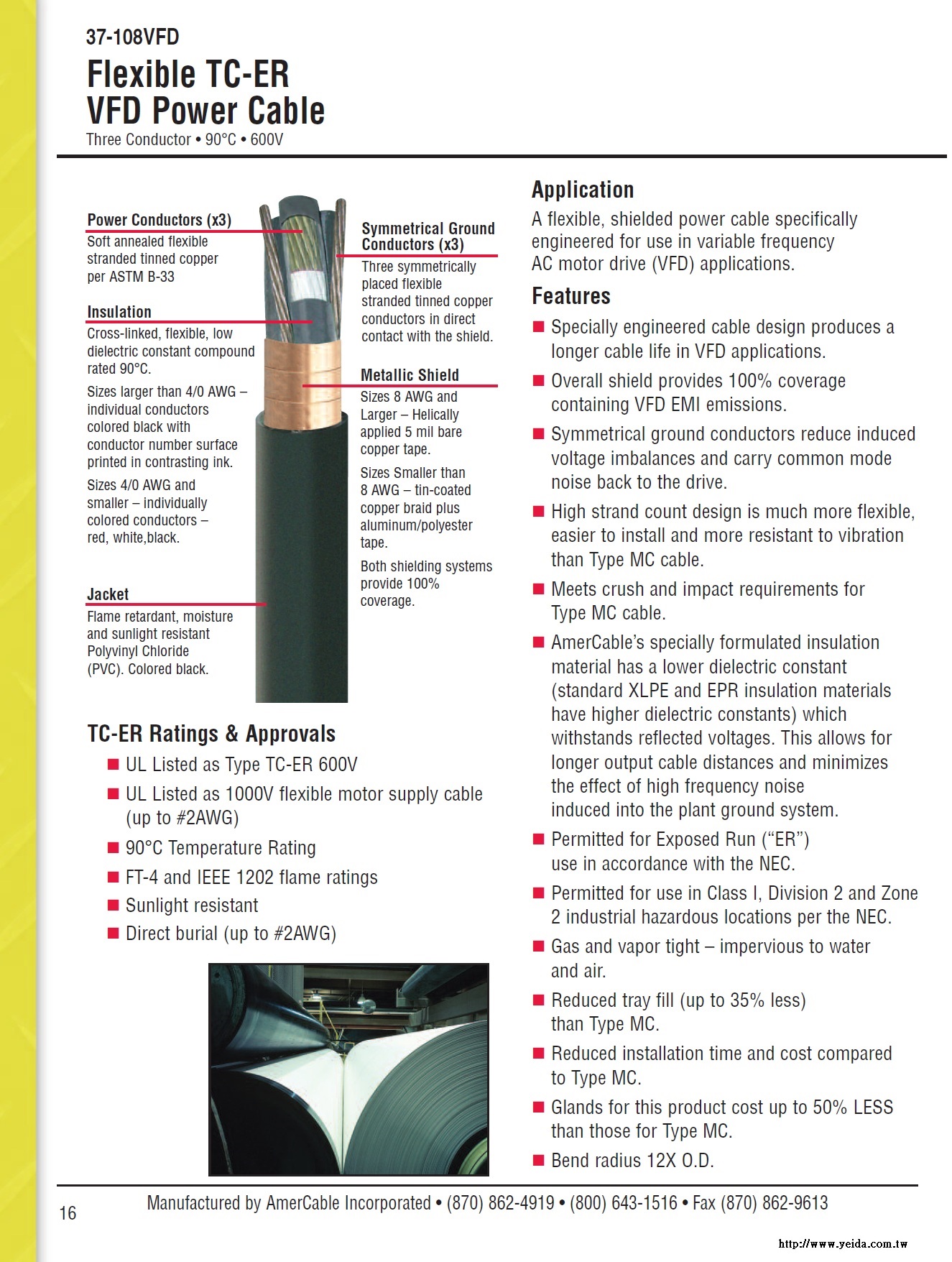

37-108VFD
Flexible TC-ER
VFD Power Cable
Three Conductor • 90°C • 600V

TC-ER Ratings & Approvals
n UL Listed as Type TC-ER 600V
n UL Listed as 1000V flexible motor supply cable
   (up to #2AWG)
n 90°C Temperature Rating
n FT-4 and IEEE 1202 flame ratings
n Sunlight resistant
n Direct burial (up to #2AWG)

Features
n Specially engineered cable design produces a
   longer cable life in VFD applications.
n Overall shield provides 100% coverage
    containing VFD EMI emissions.
n Symmetrical ground conductors reduce induced
    voltage imbalances and carry common mode
    noise back to the drive.
n High strand count design is much more flexible,
   easier to install and more resistant to vibration
   than Type MC cable.
n Meets crush and impact requirements for
   Type MC cable.
n AmerCable’s specially formulated insulation
   material has a lower dielectric constant
   (standard XLPE and EPR insulation materials
   have higher dielectric constants) which
   withstands reflected voltages. This allows for
   longer output cable distances and minimizes
   the effect of high frequency noise
   induced into the plant ground system.
n Permitted for Exposed Run (“ER”)
   use in accordance with the NEC.
n Permitted for use in Class I, Division 2 and Zone
   2 industrial hazardous locations per the NEC.
n Gas and vapor tight – impervious to water
   and air.
n Reduced tray fill (up to 35% less)
   than Type MC.
n Reduced installation time and cost compared
   to Type MC.
n Glands for this product cost up to 50% LESS
   than those for Type MC.
n Bend radius 12X O.D.
