Application
These single conductor portable power
cables are extremely flexible and specifically
designed for use on mobile substation
equipment. The Type SH cable is often
necessary for supplying power while
replacing damaged utility poles or during
routine maintenance of substations.

37-550

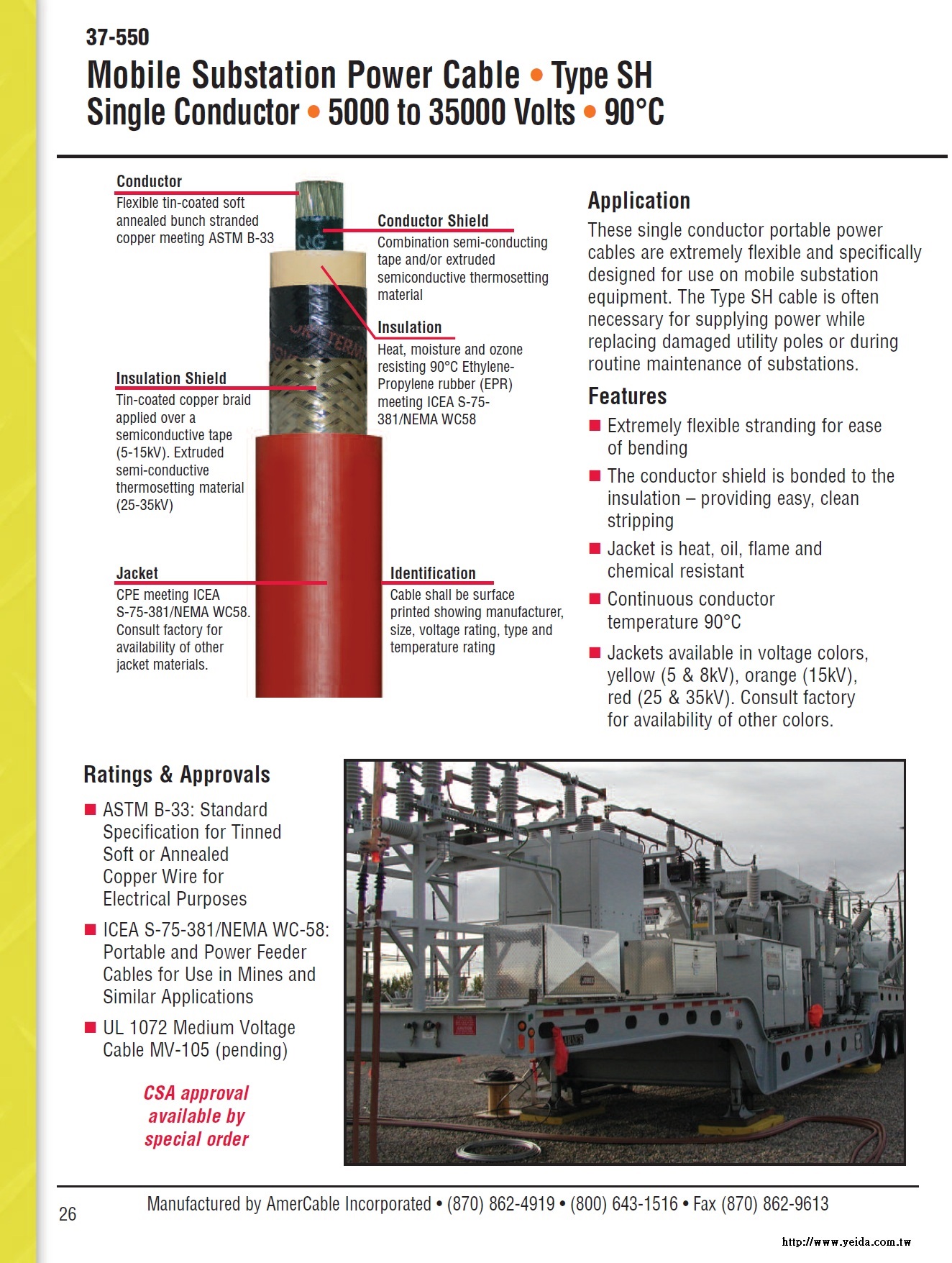

Mobile Substation Power Cable • Type SH
Single Conductor • 5000 to 35000 Volts • 90°C

Features
n Extremely flexible stranding for ease
   of bending
n The conductor shield is bonded to the
    insulation – providing easy, clean
    stripping
n Jacket is heat, oil, flame and
   chemical resistant
n Continuous conductor
   temperature 90°C
n Jackets available in voltage colors,
   yellow (5 & 8kV), orange (15kV),
   red (25 & 35kV). Consult factory
   for availability of other colors.

Ratings & Approvals
n ASTM B-33: Standard
    Specification for Tinned
    Soft or Annealed
    Copper Wire for
    Electrical Purposes
n ICEA S-75-381/NEMA WC-58:
   Portable and Power Feeder
   Cables for Use in Mines and
   Similar Applications
n UL 1072 Medium Voltage
   Cable MV-105 (pending)
