商品編號: Amer-37-102CIR
Amer-37-102CIR Gexol® Insulated CIR® Control Cable Extremely Flexible Multi-Conductor • 0.6/1kV • Rated 90°C 多芯 柔性非鎧裝耐衝擊, 擠壓控制電纜
CIR®
Crush & Impact Resistant without External Armoring
CIR is a next-generation cable designed to replace old-technology cables like Type MC. This highly robust cable offers significant advantages over Type MC for many industrial and mining applications,CIR passes the same stringent crush and impact tests required by UL 2225 forType MC-HL without the use of external armoring.
Value Benefits:
- MSHA Approved
- UL Listed as Type TC-ER
- Highly Flexible
- Smaller Bend Radius
- Power, control, instrumentation and VFD constructions

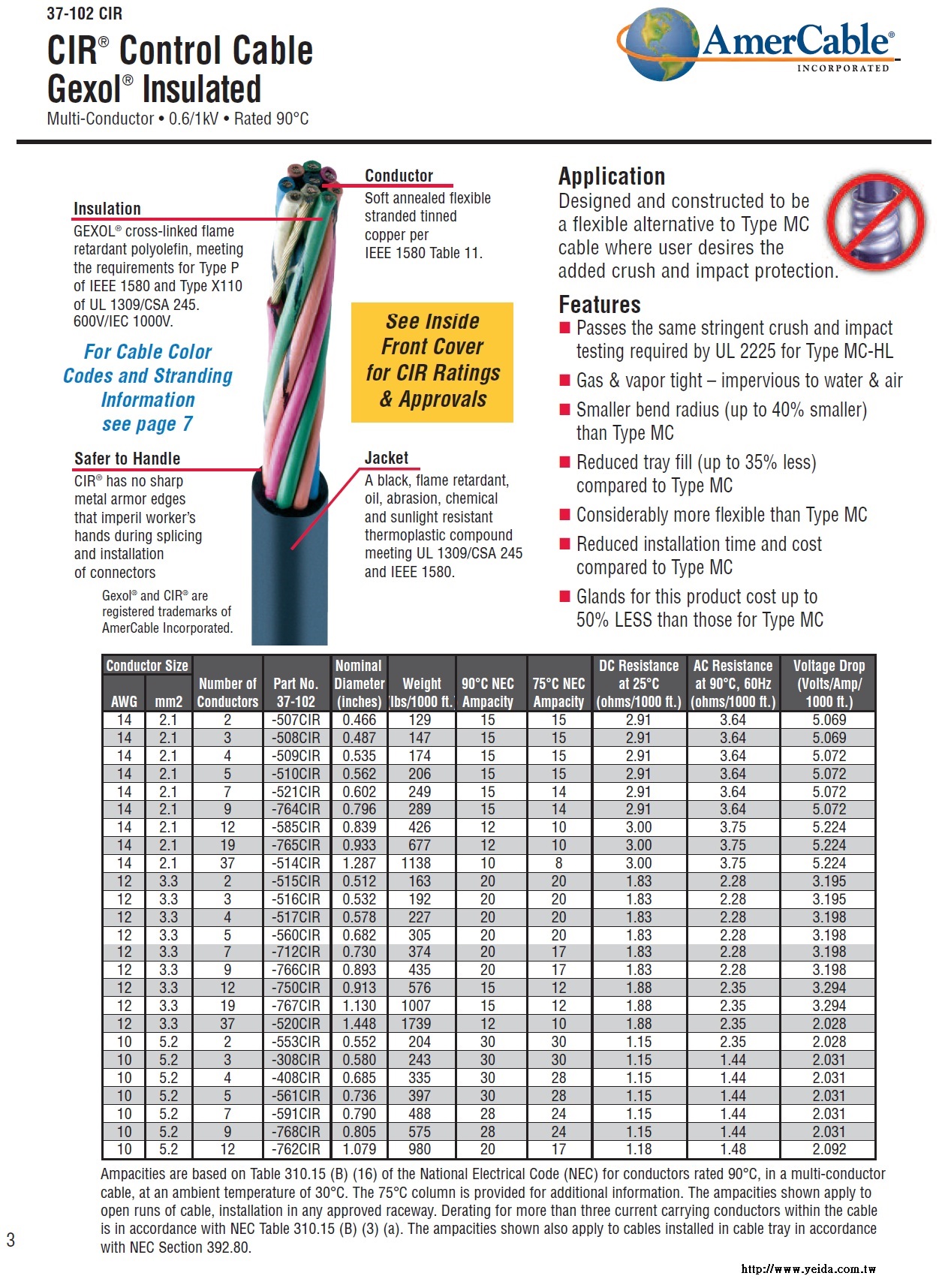

37-102 CIR
CIR® Control Cable
Gexol® Insulated
Multi-Conductor • 0.6/1kV • Rated 90°C
Application
Designed and constructed to be
a flexible alternative to Type MC
cable where user desires the
added crush and impact protection.
Features
n Passes the same stringent crush and impact
testing required by UL 2225 for Type MC-HL
n Gas & vapor tight – impervious to water & air
n Smaller bend radius (up to 40% smaller)
than Type MC
n Reduced tray fill (up to 35% less)
compared to Type MC
n Considerably more flexible than Type MC
n Reduced installation time and cost
compared to Type MC
n Glands for this product cost up to
50% LESS than those for Type MC
About CIR® Cables
AmerCable’s CIR is a next-generation cable designed to replace older-technology cables like Type MC. AmerCable CIR
has been successfully used globally since 2002 for mission-critical equipment operating in harsh environments.
CIR passes the same stringent crush and impact tests required by UL 2225 for Type MC-HL without the use of
external armoring. This highly robust cable offers significant advantages over Type MC for many industrial and
mining applications, including:
n MSHA Approved – 3 & 4 conductor power cables
n UL Listed as Type TC-ER – suitable for a variety of uses, including those where tray cables are not
practical or cost-prohibitive.
n Insulated with Gexol® – AmerCable’s exclusive insulating compound provides superior flexibility, dielectric
properties and field proven performance in the most severe, isolated operating environments.
n Highly flexible – unlike Type MC, CIR is flexible for easier installation.
The cable can also be reused during an upgrade or retrofit.
n Smaller bend radius – up to 40% smaller than Type MC
n Reduced tray fill – up to 35% less compared to Type MC
n Gas & vapor tight – impervious to water and air
n Ergonomically Superior – from an ergonomic perspective,
CIR is safer to handle for workers and much simpler to
prepare for termination.
Faster and Easier to Install than Metal Clad
CIR® is the fastest, safest crush-proof cable
to install. Metal clad cable installation requires an expensive
box of tools and a multi-step procedure for jacket removal.
|
