Ratings & Approvals
􀀀ICEA S-95-658/ NEMA WC-70: Nonshielded Power
     Cables Rated 2000 Volts or Less for the
     Distribution of Electrical Energy
􀀀 UL Standard 44: Thermoset Insulated Wires &
     Cables, Types RHH, RHW-2. UL VW-1
􀀀 UL Standard 1685: Vertical Tray Fire propagation
     and Smoke Release Test for Electrical and
     optical Fiber Cables. (UL,ST-1)
􀀀 ASTM B-33: Standard Specification for Tinned Soft
     or Annealed Copper Wire for Electrical Purposes
􀀀 ASTM B-172: Standard Specification for
     Rope-Lay-Stranded Copper Conductors having
     Bunch-Stranded Members, for Electrical
     Conductors
􀀀 MSHA P-184

Application

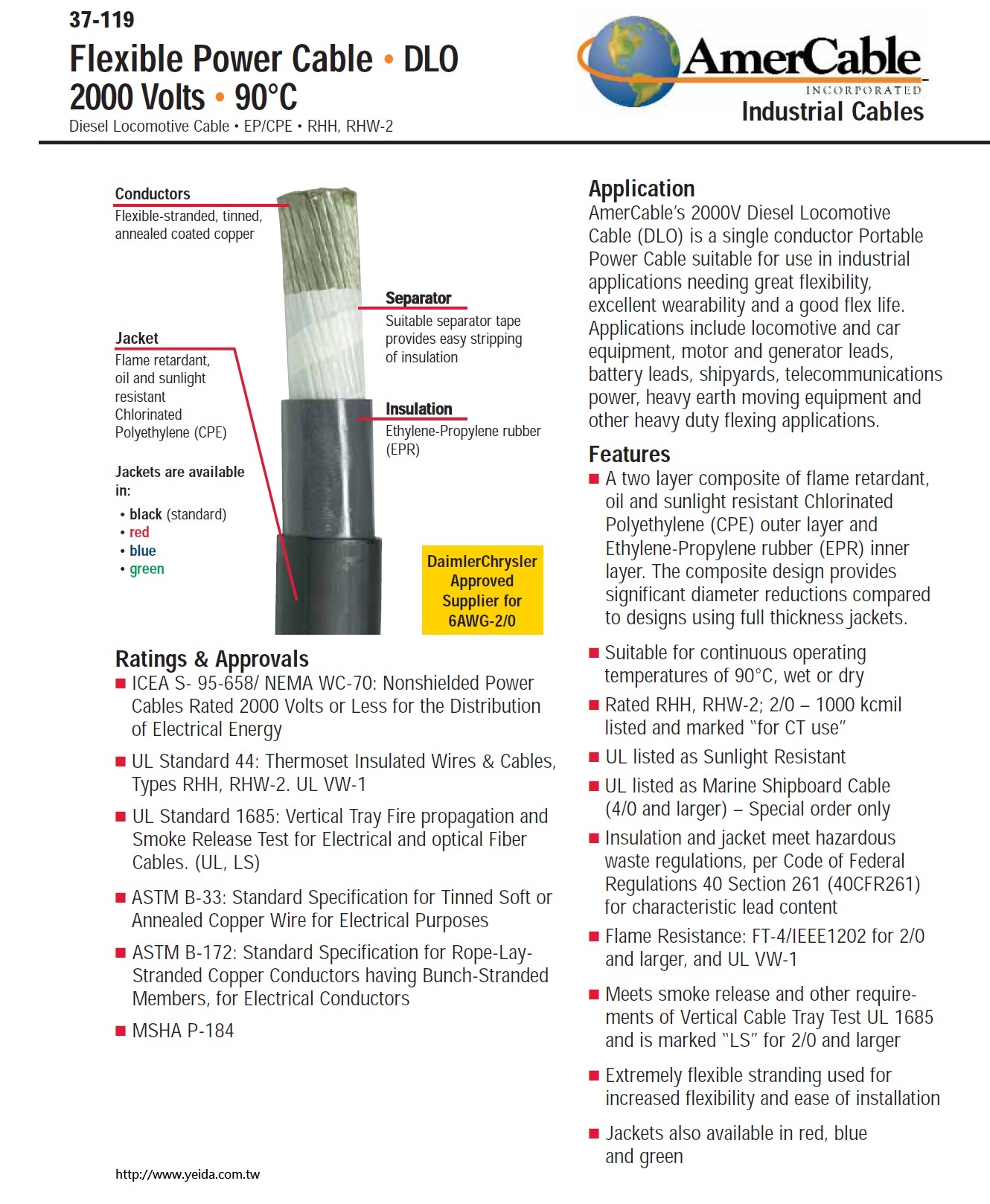

AmerCable’s2000V Diesel Locomotive
Cable (DLO) is a single conductor portable
power cable suitable for use in applications
needing great flexibility, excellent wearability
and good flex life. Applications include
locomotive and car equipment, motor and
generator leads, battery leads, shipyards,
telecommunications power, heavy earth
moving equipment, renewable energy and
other heavy duty flexing applications.
　

Features
􀀀 A two layer composite of flame retardant,
     oil and sunlight resistant Chlorinated
     Polyethylene (CPE) outer layer and Ethylene-
     Propylene rubber (EPR) inner layer. The
     composite design provides significant
     diameter reductions compared to designs
     using full thickness jackets.
􀀀 Suitable for continuous operating
    temperatures of 90°C, wet or dry
􀀀Rated RHH, RHW-2; 2/0 – 1111 kcmil
    listed and marked “for CT use”
􀀀 UL listed as Sunlight Resistant
􀀀 UL listed as Marine Shipboard Cable
     (4/0 and larger) – Special order only
􀀀 Insulation and jacket meet hazardous
     waste regulations, per Code of Federal
     Regulations 40 Section 261 (40CFR261)
     for characteristic lead content
􀀀 Flame Resistance: FT-4/IEEE1202 for
     2/0 – 1111 kcmil and UL VW-1
􀀀 Meets smoke release and other requirements
     of Vertical Cable Tray Test UL 1685
     and is marked “ST-1” for 2/0 – 1111 kcmil
􀀀 Extremely flexible stranding used for
     increased flexibility and ease of installation
