商品編號: A-323-221-2001

323-221-2001 PLTC 300 V PVC-PVC OVERALL SHIELDED SINGLE AND MULTI PAIR Instrumentation Cable 隔離儀俵控制電纜


For use as instrumentation cable inside or outside incontrol applications. Suitable for installation in trays,troughs, channels, conduit, wireways and for aerialuse when supported by a messenger. Suitable forClass 2 and 3 electrical circuits per NEC Article 725.

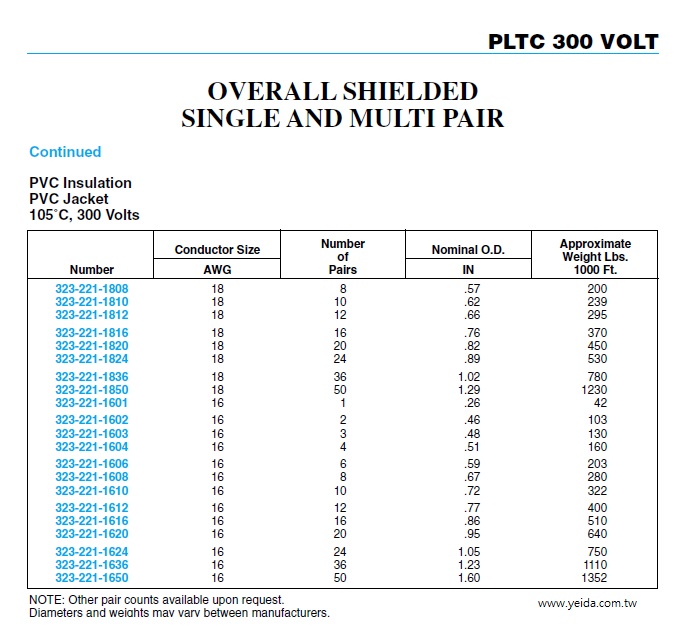

OVERALL SHIELDED
SINGLE AND MULTI PAIR
PVC Insulation
PVC Jacket
105°C, 300 Volts

APPLICATIONS:
For use as instrumentation cable inside or outside in
control applications. Suitable for installation in trays,
troughs, channels, conduit, wireways and for aerial
use when supported by a messenger. Suitable for
Class 2 and 3 electrical circuits per NEC Article 725.
　

SPECIFICATIONS:
1. CONDUCTORS: Stranded, bare copper.
2. INSULATION: 105°C polyvinyl chloride (PVC).
3. PAIRS: Pairs are twisted with a suitable lay to reduce magnetic interference and color
coded black and white. Each pair is printed numerically to ensure easy identification.
4. ASSEMBLY: The individual pairs are cabled together to form round completed assembly.
Overall aluminum/polyester foil shield with stranded tinned copper drain wire. All cable
assemblies include a communication wire for calibration.
5. OVERALL JACKET: Flame retardant, sunlight resistant, black PVC. A rip cord is included
for jacket removal.
6. STANDARDS: Meets Article 725 of the NEC for Type PLTC and UL 13.
Finished cable meets IEEE 383 and UL 1581 vertical tray flame tests.
7. TEMPERATURE: 105°C
8. VOLTAGE: 300 Volts
