商品編號: A-323-231-2002
323-231-2002 PLTC 300V INDIVIDUALAND OVERALL SHIELDED MULTI PAIR Instrumentation Cable 個別隔離儀俵控制電纜
For use as instrumentation cable inside or outside incontrol applications. Individually and overall shieldedfor greater isolation and noise reduction. Suitable forinstallation in trays, troughs, conduit, wireways andfor aerial use when supported by a messenger.Suitable for Class 2 and 3 electrical circuits perNEC Article 725.
INDIVIDUALAND OVERALL SHIELDED
MULTI PAIR
PVC Insulation
PVC Jacket
105°C, 300 Volts
APPLICATIONS:
For use as instrumentation cable inside or outside in
control applications. Individually and overall shielded
for greater isolation and noise reduction. Suitable for
installation in trays, troughs, conduit, wireways and
for aerial use when supported by a messenger.
Suitable for Class 2 and 3 electrical circuits per
NEC Article 725.
SPECIFICATIONS:
1. CONDUCTORS: Bare copper, Class B, concentric stranded.
2. INSULATION: 105°C polyvinyl chloride (PVC).
3. PAIRS: Each pair is twisted with a suitable lay to reduce magnetic interference and
color coded black and white. Each pair is also printed numerically to ensure easy
identification. An aluminum/polyester foil shield with stranded tinned copper drain wire
is applied.
4. ASSEMBLY: The individual pairs are cabled together to form a substantially circular
cross-section of the completed assembly. An aluminum/polyester foil shield with
stranded tinned copper drain wire is applied overall. All cable assemblies include a
communication wire for calibration and a rip cord for jacket removal.
5. OVERALL JACKET: Flame retardant, sunlight resistant, black polyvinyl chloride (PVC) jacket.
6. STANDARDS: Meets Article 725 of the NEC for Type PLTC and UL 13.
Finished cable meets IEEE 383 and UL 1581 vertical tray flame tests.
7. TEMPERATURE: 105°C
8. VOLTAGE: 300 Volts

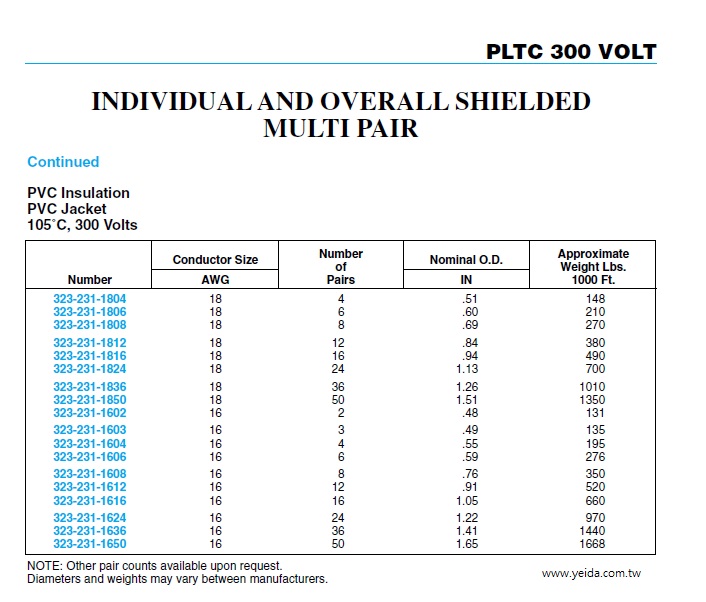

Conductor Siz
|
