商品編號: TACHII-SB-2SQ-2C-D

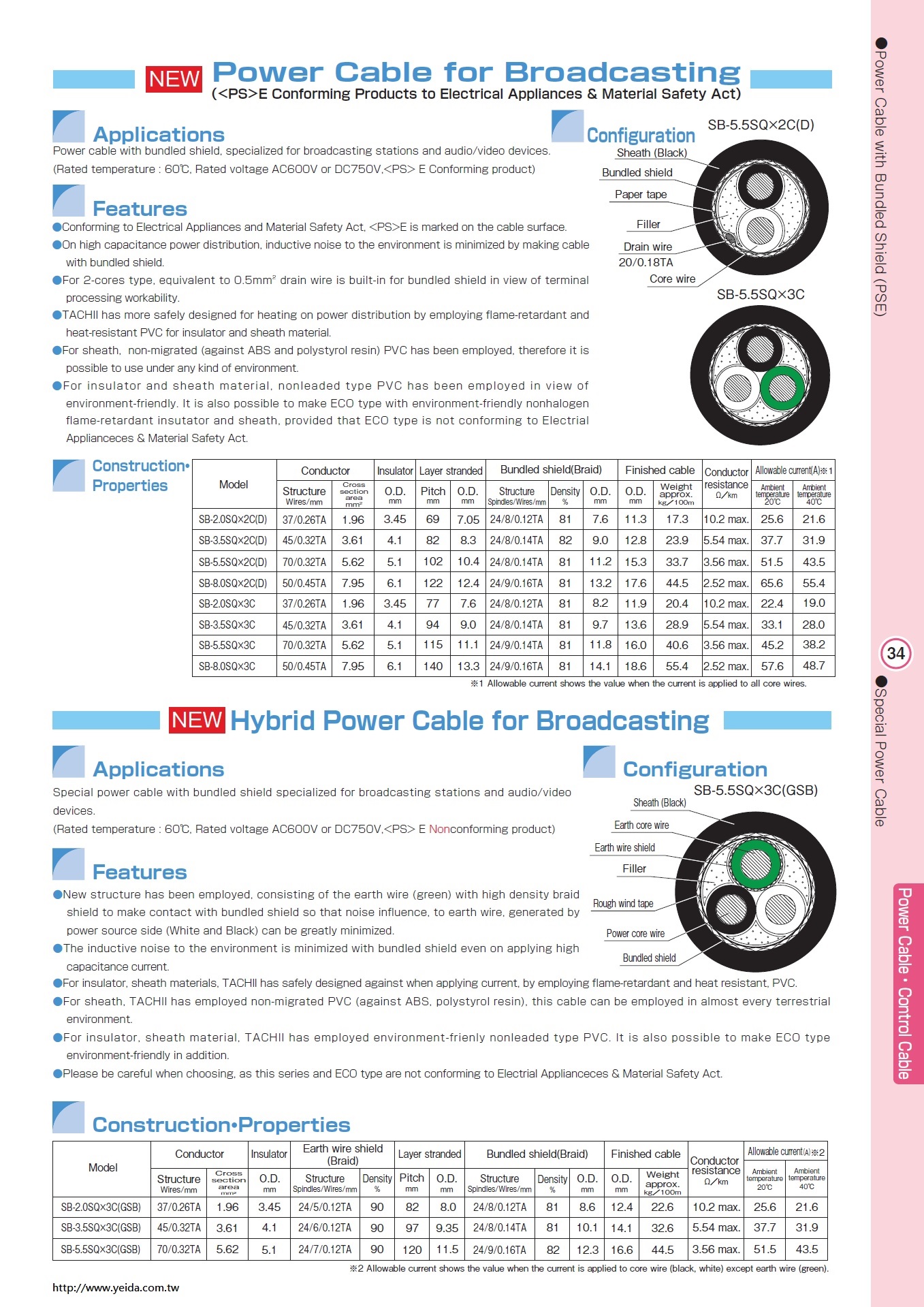

TACHII, SB Power Cable for Broadcasting, bundled shield, 600V, PSE (2.0SQ to 8SQ) 2C,3C廣播系統用附隔離電源線
Applications
Power cable with bundled shield, specialized for broadcasting stations and audio/video devices.
(Rated temperature : 60℃, Rated voltage AC600V or DC750V, E Conforming product)
Features
Configuration
(E Conforming Products to Electrical Appliances & Material Safety Act)
SB-5.5SQ×2C(D)
SB-5.5SQ×3C
●Conforming to Electrical Appliances and Material Safety Act, E is marked on the cable surface.
●On high capacitance power distribution, inductive noise to the environment is minimized by making cable
with bundled shield.
●For 2-cores type, equivalent to 0.5mm2 drain wire is built-in for bundled shield in view of terminal
processing workability.
●TACHII has more safely designed for heating on power distribution by employing flame-retardant and
heat-resistant PVC for insulator and sheath material.
●For sheath, non-migrated (against ABS and polystyrol resin) PVC has been employed, therefore it is
possible to use under any kind of environment.
●For insulator and sheath material, nonleaded type PVC has been employed in view of
environment-friendly. It is also possible to make ECO type with environment-friendly nonhalogen
flame-retardant insutator and sheath, provided that ECO type is not conforming to Electrial
Applianceces & Material Safety Act.
