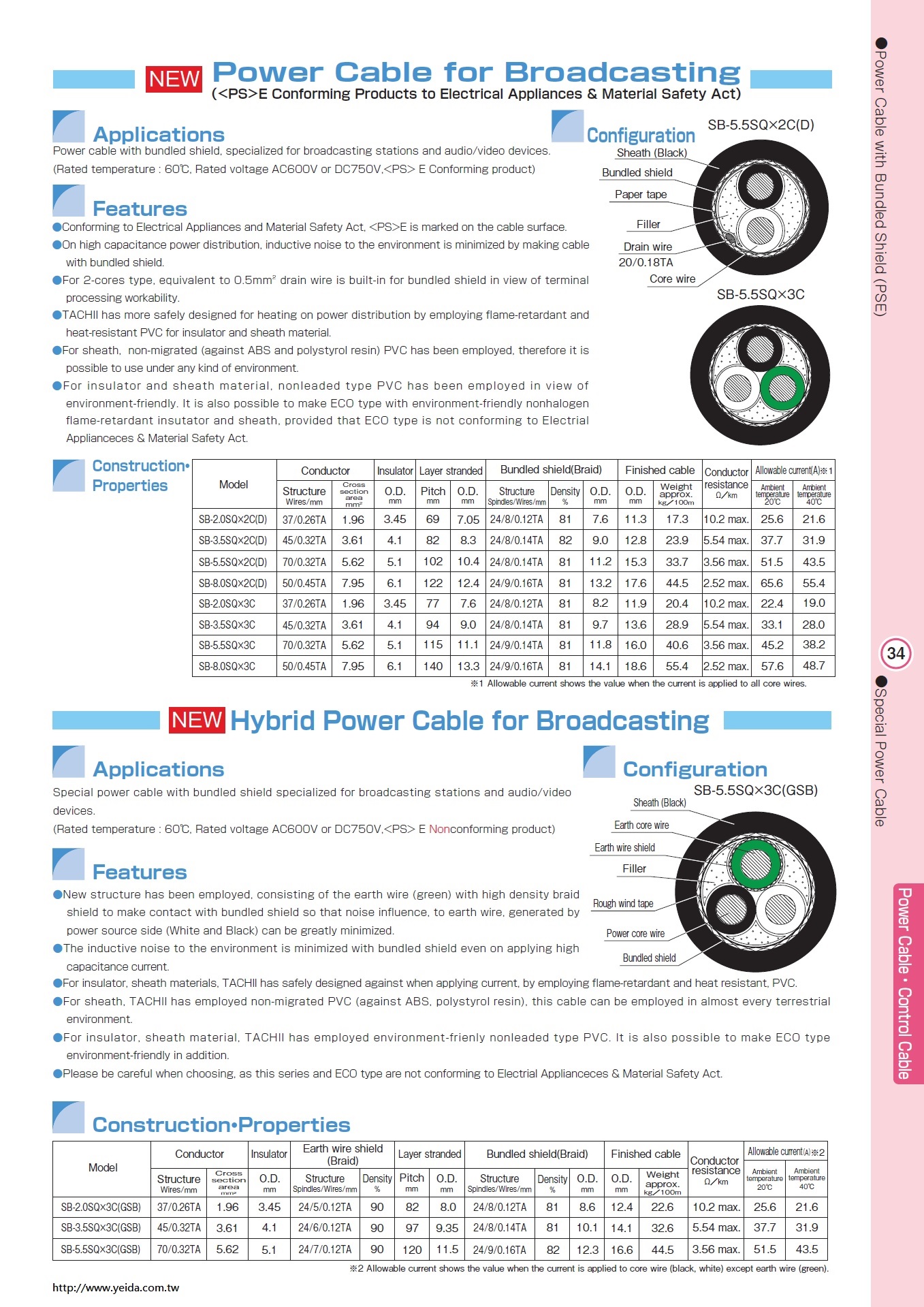

Applications
Special power cable with bundled shield specialized for broadcasting stations and audio/video
devices.
(Rated temperature : 60℃, Rated voltage AC600V or DC750V, E Nonconforming product)

Features

●New structure has been employed, consisting of the earth wire (green) with high density braid
shield to make contact with bundled shield so that noise influence, to earth wire, generated by
power source side (White and Black) can be greatly minimized.
●The inductive noise to the environment is minimized with bundled shield even on applying high
capacitance current.
●For insulator, sheath materials, TACHII has safely designed against when applying current, by employing flame-retardant and heat resistant, PVC.
●For sheath, TACHII has employed non-migrated PVC (against ＡＢＳ, polystyrol resin), this cable can be employed in almost every terrestrial
environment.
●For insulator, sheath material, TACHII has employed environment-frienly nonleaded type PVC. It is also possible to make ECO type
environment-friendly in addition.
●Please be careful when choosing, as this series and ECO type are not conforming to Electrial Applianceces & Material Safety Act.
