商品編號: TACHII-Data-02TA-25P

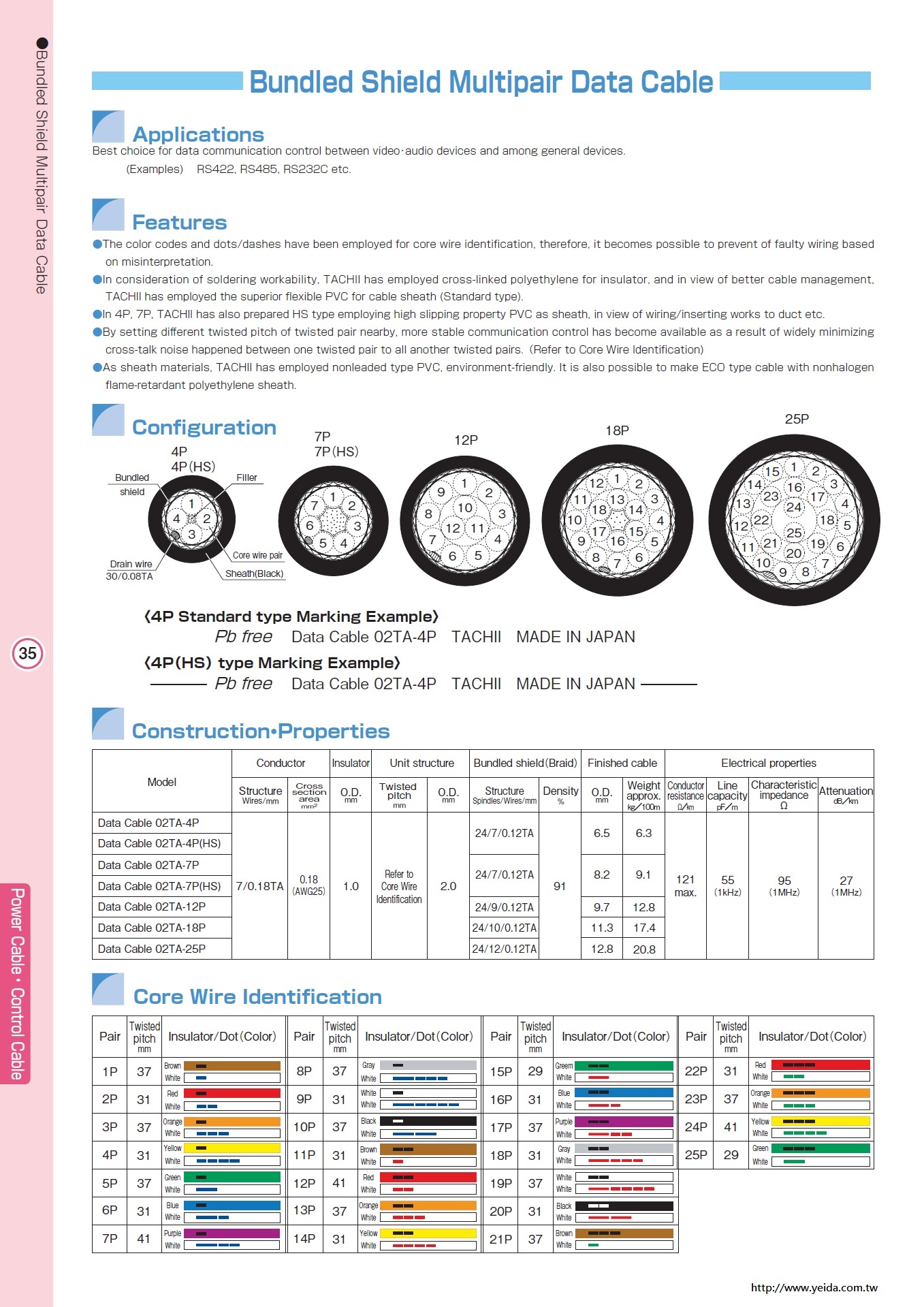

TACHII, 02TA, RS232, RS422, RS485, 25AWG, Bundled Shield Multipair Data Cable AV多對型廣播系統數據傳輸用線
Applications
Best choice for data communication control between video・audio devices and among general devices.
(Examples) RS422, RS485, RS232C etc.
Features
●The color codes and dots/dashes have been employed for core wire identification, therefore, it becomes possible to prevent of faulty wiring based
on misinterpretation.
●In consideration of soldering workability, TACHII has employed cross-linked polyethylene for insulator, and in view of better cable management,
TACHII has employed the superior flexible PVC for cable sheath (Standard type).
●In 4P, 7P, TACHII has also prepared HS type employing high slipping property PVC as sheath, in view of wiring/inserting works to duct etc.
●By setting different twisted pitch of twisted pair nearby, more stable communication control has become available as a result of widely minimizing
cross-talk noise happened between one twisted pair to all another twisted pairs.(Refer to Core Wire Identification)
●As sheath materials, TACHII has employed nonleaded type PVC, environment-friendly. It is also possible to make ECO type cable with nonhalogen
flame-retardant polyethylene sheath.
