    TACHII, RS-422 AWG28 Communication and AWG24 Control ,Composite Cable 廣播系統RS422+電源控制傳輸用複合式電纜線
    看原圖
    		5493176

    商品編號: TACHII-RS422-TS7C

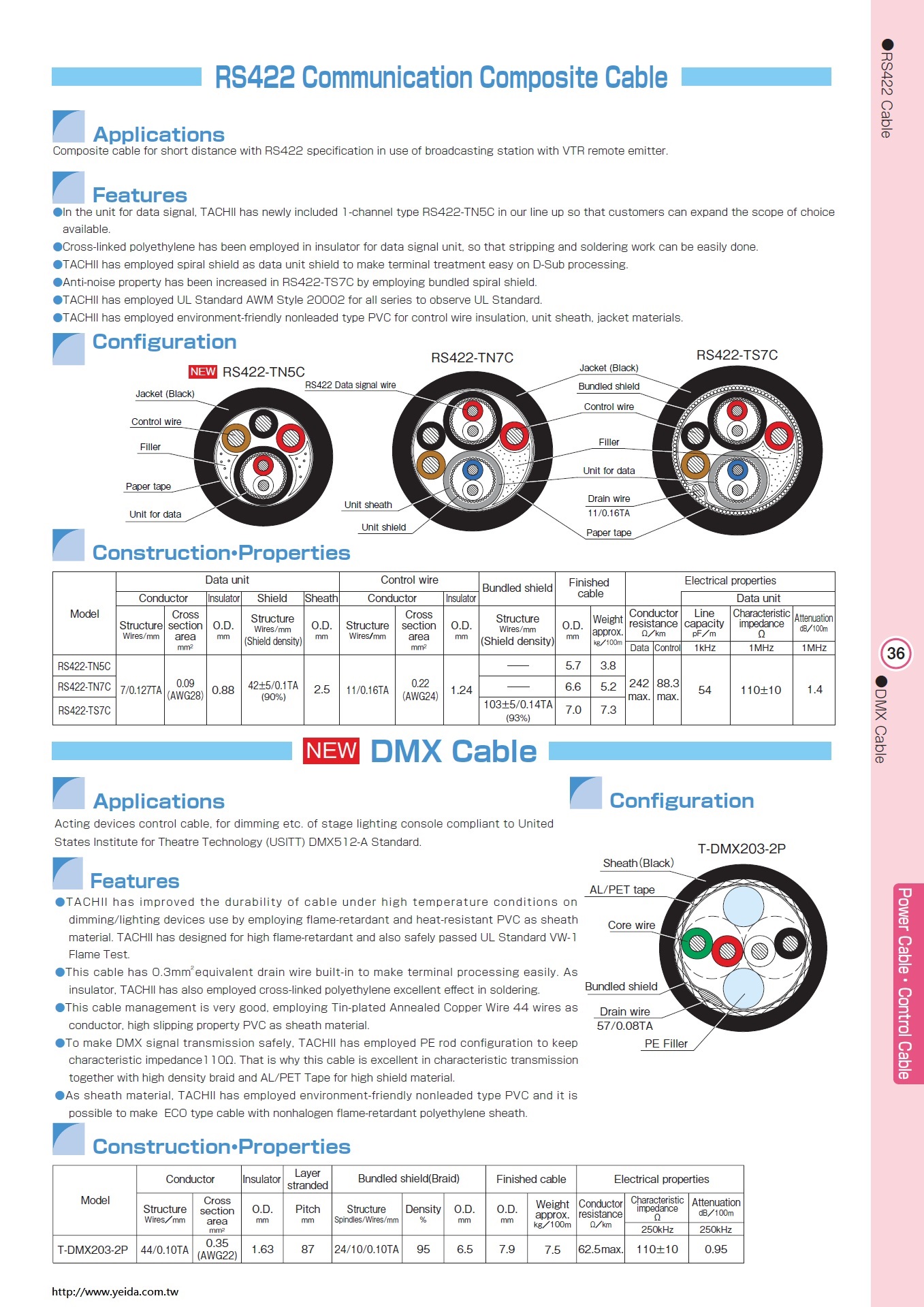

    TACHII, RS-422 AWG28 Communication and AWG24 Control ,Composite Cable AV廣播系統RS422+電源控制傳輸用複合式電纜線

    Applications
    Composite cable for short distance with RS422 specification in use of broadcasting station with VTR remote emitter.
    　

    Features
    ●In the unit for data signal, TACHII has newly included 1-channel type RS422-TN5C in our line up so that customers can expand the scope of choice
    　available.
    ●Cross-linked polyethylene has been employed in insulator for data signal unit, so that stripping and soldering work can be easily done.
    ●TACHII has employed spiral shield as data unit shield to make terminal treatment easy on D-Sub processing.
    ●Anti-noise property has been increased in RS422-TS7C by employing bundled spiral shield.
    ●TACHII has employed UL Standard AWM Style 20002 for all series to observe UL Standard.
    ●TACHII has employed environment-friendly nonleaded type PVC for control wire insulation, unit sheath, jacket materials.
