商品編號: TACHII-TCX-8DHFBW-PE

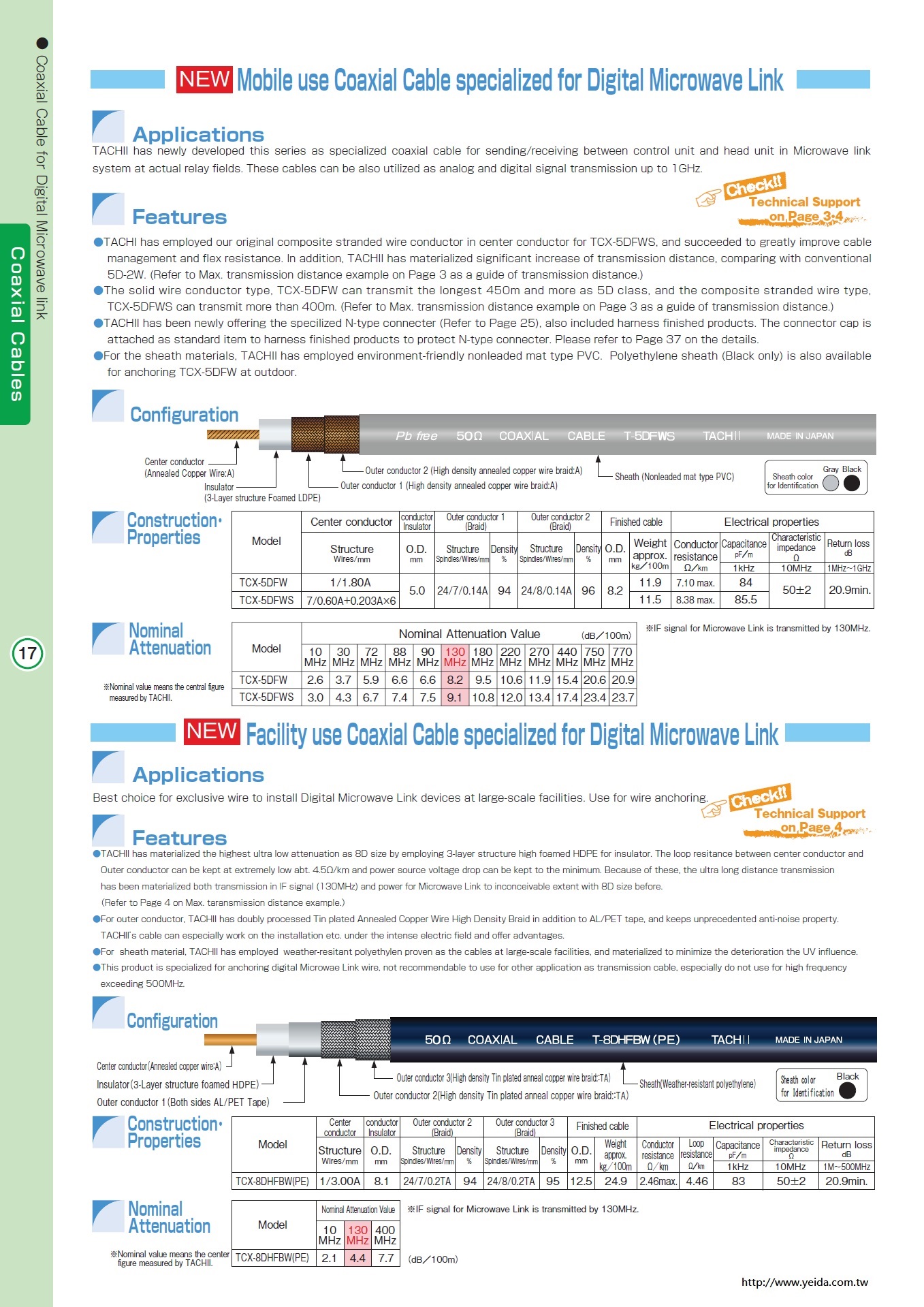

TACHII, TCX-8DHFBW-PE, 50Ω Facility use Coaxial Cable specialized for Digital Microwave Link 攝影棚廣播系統設備用中繼高頻微波信號傳輸同軸電纜線
Applications
Best choice for exclusive wire to install Digital Microwave Link devices at large-scale facilities. Use for wire anchoring.
Features
●TACHII has materialized the highest ultra low attenuation as 8D size by employing 3-layer structure high foamed HDPE for insulator. The loop resitance between center conductor and
Outer conductor can be kept at extremely low abt. 4.5Ω/km and power source voltage drop can be kept to the minimum. Because of these, the ultra long distance transmission
has been materialized both transmission in IF signal (130MHz) and power for Microwave Link to inconceivable extent with 8D size before.
(Refer to Page 4 on Max. taransmission distance example.)
●For outer conductor, TACHII has doubly processed Tin plated Annealed Copper Wire High Density Braid in addition to AL/PET tape, and keeps unprecedented anti-noise property.
TACHII’s cable can especially work on the installation etc. under the intense electric field and offer advantages.
●For sheath material, TACHII has employed weather-resitant polyethylen proven as the cables at large-scale facilities, and materialized to minimize the deterioration the UV influence.
●This product is specialized for anchoring digital Microwae Link wire, not recommendable to use for other application as transmission cable, especially do not use for high frequency
exceeding 500MHz.
