MIL-C-17, RG-10 52-Ohm, Coaxial Cable 軍規影音資料傳輸同軸電纜 (加 Armour 可直埋)
RG10 coax cable contains a bare copper conductor and a PVC jacket. This coax cable can be used in applications that involve direct burial so long as these applications do not exceed its temperature range of -40°C to 80°C or a maximum voltage of 4,000 volts. It is designed to meet the military's MIL-C-17 specifications with our M17/74-RG215 being the military equivalent to our RG10 coax cable. This type of cable is generally used for data transmission purposes, such as applications that involve radio or video signals.
Part Number |
Conductor Stranding |
Approx LBS/MFT |
Nom. Dia. of Cond. |
Nom. Imp. |
Nom. O.D. (in) |
Dielectric (in) |
Nom. Cap. (pF/ft) |
RG-10 |
7/.0285 |
0.00 |
0.0855 |
52 |
0.4630 |
0.285 |
29.6 |
RG10 Specifications: (subject to change without notice) |
No. of Strands |
7 |
Strand Size |
0.0285 |
Conductor Stranding |
7/.0285 |
Approx LBS/MFT |
0.00 |
Nom. Dia. of Cond. |
0.0855 |
Nom. Imp. |
52 |
Nom. O.D. (in) |
0.4630 |
Dielectric (in) |
0.285 |
Nom. Cap. (pF/ft) |
29.6 |
Cond. Material |
Bare Copper |
Dielectric Material |
Polyethylene (PE) |
Shield Material |
Bare Copper |
Shield |
Overall Braid Shield |
Jacket Material |
Polyvinylchloride (PVC) |
Armor Material |
Aluminum Braid |
Min. Temp |
-40°C |
Max. Temp |
80°C |
Voltage |
4000 |
RG10 Coax Cable Approvals:
- Military Specification:MIL-C-17
- Mil-Spec Equivalent: M17/74-RG215
RG 10 Coax Cable Applications:
- Approved for direct burial applications.

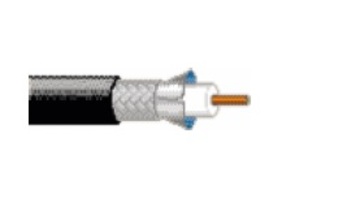

RG10 Coax Cable Construction:
- Conductor: Bare Copper
- Dielectric: Solid Low-Density Polyethylene
- Shielding: Bare Copper Shield
- Jacket: PVC (non-contaminating) Type II per MIL-C-17
- Jacket Color: Gray
- Armor: Aluminum Braid
RG 10 Coax Cable Ratings:
- Temperature Range: -40°C to +80°C
- Max Operating Voltage (vms): 4,000
