400Hz Airport Cables Single Core 機場電源電纜
400Hz Airport Cables Single Core
Applications
These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
這些電纜是專為400赫茲系統的飛機電源,電腦系統及雷達站,適合在地上鋪設,水,戶外,室內和電纜管。
Standards
VDE 0295

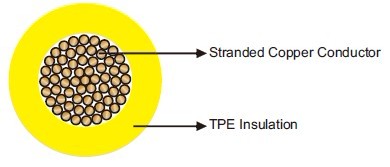

Construction
Conductor: Stranded copper conductor, Class 5 to VDE 0295/IEC 60228.
Insulation: TPE.
Technical Data
Rated Voltage Uo/U (Um) |
600/1000V |
Operating Temperatures |
-40℃~+90℃ |
Minimum Bending Radius |
static: 6×OD; dynamic: 7×OD
|
Halogen Free |
Yes |
Abrasion Resistant |
Yes |
UV Resistant |
Yes |
Oil Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
kg/km |
1×35 |
11.5 |
430 |
1×50 |
12.6 |
665 |
1×70 |
14.0 |
910 |
1×120 |
23.0 |
1545 |
|
