    MS 27110 (Mil-W-8777 Wire) silver-coated silicone PVC FEP 鍍銀矽橡膠 PVC 鐵氟龍耐高溫軍規電子線
    看原圖
    		30206347

    商品編號: Kebel-A-MS27110

    MS 27110 (Mil-W-8777 Wire) silver-coated silicone PVC FEP 鍍銀矽橡膠 PVC 鐵氟龍耐高溫軍規電子線

    MS 27110 (Mil-W-8777 Wire)

    Application and Description:

    These silicone rubber primary insulated single-core MS 27110 (Mil-W-8777 Wire) cables are used in aircraft and missiles using any combination of electrical loading and ambient temperature. It has low moisture absorption and generally good resistance to chemicals.


    這些矽橡膠主絕緣單芯MS27110（MIL-W-8777線）電纜用的電負載和環境溫度的任何組合在飛機和導彈使用。它具有低的吸濕性和對化學品普遍良好性能。

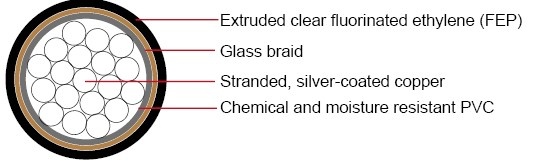

    Construction:



    Conductor: Stranded, silver-coated copper conductor

    Insulation: Silicone rubber primary insulation

    Braid: The glass braid of tightly woven glass fibers impregnated with silicone or teflon

    Jacket: extruded clear fluorinated ethylene (FEP)

    Characteristics:

    Temperature Range: 200°C

    Voltage Rating: 600 volts

    MS27110

    MIL-W-8777

    MIL-DTL-8777

    Dimensions and Weight:

    AWG Size

    Conductor Stranding

    Jacket Thick

    Max. O.D.

    Min. O.D.

    Max. Resistance (Ohm/1000 @ 20°C)

    Approx LBS/MFT


    in

    mm

    in

    mm





    22

    19/34

    0.007

    0.090

    2.286

    0.082

    2.083

    15.20

    7.1

    20

    19/32

    0.007

    0.01

    0.254

    0.092

    2.337

    9.42

    9.0

    18

    19/30

    0.007

    0.112

    2.845

    0.104

    2.642

    6.03

    12.1

    16

    19/29

    0.007

    0.120

    3.048

    0.112

    2.845

    4.76

    14.3

    14

    19/27

    0.008

    0.145

    3.683

    0.137

    3.480

    2.99

    21.5

    12

    19/25

    0.008

    0.165

    4.191

    0.155

    3.937

    1.88

    30.5

    10

    49/27

    0.008

    0.199

    5.055

    0.189

    4.801

    1.16

    48.0

    8

    133/29

    .0100

    0.25

    6.350

    0.236

    5.994

    0.70

    75.0

    6

    133/27

    0.010

    0.299

    7.595

    0.285

    7.239

    0.44

    114.0

    4

    133/25

    0.010

    0.364

    9.246

    0.35

    8.890

    0.28

    173.0
