RG7H1R for Airport Lighting Cables 機場照明電纜

30203499

商品編號: Caledon-RG7H1R

RG7H1R for Airport Lighting Cables 機場照明電纜

★★★★商品說明★★★★

RG7H1R for Airport Lighting Cables

RG7H1R for Airport Lighting Cables

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolasting transformers, and between the isolating transformers.

這些電纜作為機場照明設備的主電纜串聯電路連接恆流穩壓器和隔離變壓器和隔離變壓器之間。

Standards

ENV 50213

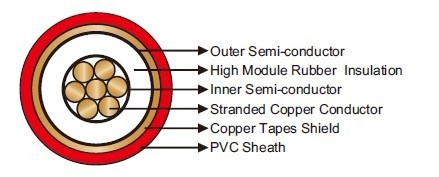

Construction

Conductor: Compact stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: High module rubber compound, G7 type.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Bare copper tapes.
Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um)	3.6/6kV
Maximum Conductor Temperature	90℃
Short Circuit Temperature	250℃
Operating Temperatures	0℃~+90℃
Minimum Bending Radius	15×OD
Flame Retardant	Yes

Dimensions and Weight

Construction	Nominal Insulation Thickness	Minimum Shield Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
No. ×mm²	mm	mm	mm	mm	kg/km
1×10	2.3	0.075	1.4	14.0	305
