    Airport Lighting Cables FAA L-824 Type B Unshielded 5kV 耐高壓機場照明電纜
    看原圖
    		30203506




    商品編號: Caledon-FAAL-824

    Airport Lighting Cables FAA L-824 Type B Unshielded 5kV 耐高壓機場照明電纜



    ★★★★商品說明★★★★

    Airport Lighting Cables FAA L-824 Type B Unshielded 5kV

    FAA L-824 Type B Unshielded 5kV Airport Lighting Cables

    Applications

    These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.

    這些電纜用於互連變壓器和機場照明系統的串聯電路中的電流調節器，適合於固定應用如滑行道，跑道，導航設備，以及阻塞照明，可安裝在導管和直埋

    Standards

    FAA L-824 Type B
    ICEA S-96-659/NEMA WC71

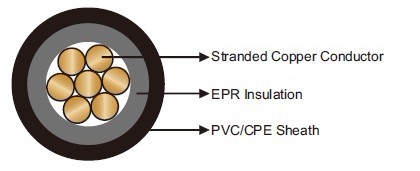

    Construction

    Conductor: Stranded bare or tinned copper conductor.
    Insulation: EPR.
    Sheath: CPE/PVC.

    Technical Data

    Rated Voltage Uo/U (Um)5kV
    Maximum Conductor Temperature90℃
    Short Circuit Temperature250℃
    Operating Temperatures-40℃~+85℃
    Minimum Bending Radius5×OD
    Halogen FreeYes
    Abrasion ResistantYes
    UV ResistantYes
    Oil ResistantYes

    Dimensions and Weight

    ConstructionNo. of
    Strand    		Nominal Insulation
    Thickness    		Nominal Sheath
    Thickness    		Nominal Overall
    Diameter    		Nominal Weight
    No. ×mm²/
    AWG    		-mminchesmminchesmmincheskg/kmlbs/kft
    1×6mm²7/192.30.091.20.0510.00.39150101
    1×87/192.30.090.760.0310.70.420180121
    1×67/192.3 0.09 0.760.03 11.70.460238160
    1×47/192.3 0.09 0.760.03 12.80.505326219
