Airport Lighting Cables FAA L-824 Type C Shielded 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, touchdown zones, land and hold short lighting systems, can be installed in conduit, duct, aerial and direct burial.

這些電纜用於互連變壓器和機場照明系統的串聯電路中的電流調節器，適合於固定應用如滑行道，跑道，導航設備，以及阻塞照明，可安裝在導管和直埋

Standards

FAA AC 150 / 5345-7E
FAA L-824 Type C
ICEA S-93-639 / NEMA WC74

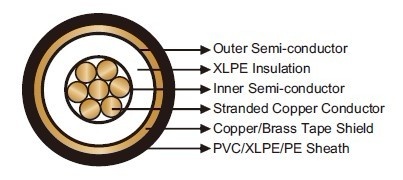

Construction

Conductor: Stranded bare or tinned copper.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Semi conducting tape or extruded.
Shield: Copper or brass tape(s). Tinned copper wire braid can be offered upon request.
Sheath: PVC. PE/XLPE can be offered upon request.

Technical Data

Dimensions and Weight
