CAVUS Japanese Standard Automotive Cable PVC絕緣1芯日本國標準汽車用電纜線

Operating temperature: –40 °C to +80 °C

★★★★商品說明★★★★

Japanese Standard Automotive Cable

CAVUS

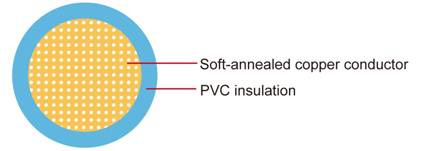

This PVC insulated single-core cable is used for automotive wiring.

Conductor				Insulation	Cable
Nominal Cross-section	No. and Dia. of Wires	Diameter max.	Electrical Resistance at 20 °C max.	Thickness Wall nom.	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	kg/km
1 x0.30	7/0.26	0.70	50.20	0.20	1.10	1.20	4
1 x0.50	7/0.32	0.90	32.70	0.20	1.30	1.40	6
1 x0.85	11/0.32	1.10	20.80	0.20	1.50	1.60	9
1 x1.25	16/0.32	1.40	14.30	0.20	1.80	1.90	13

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
