    FLYW Germany Standard Automotive Cable –40°C to 125°C 耐熱單芯德國標準汽車用電纜線
    看原圖
    30202332




    商品編號: Caledon-FLYW

    FLYW Germany Standard Automotive Cable –40°C to 125°C 耐熱單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLYW

    Applications

    This PVC insulated single-core wire is used for automobiles, motorcycles and other motor vehicles. It has good heat resistance.

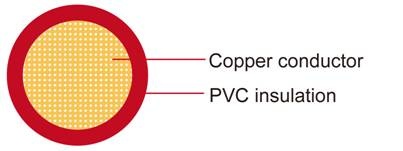

    Construction


    ConductorCu-ETP1 bare according to DIN EN13602
    InsulationPVC
    Standard ComplianceISO 6722 Calss C

    Technical Parameters

    Operating temperature: –40°C to 125°C

    ConductorInsulationCable
    Nominal Cross-sectionNo. and Dia. of WiresDiameter max.Electrical Resistance at 20°C max.Thickness Wall nom.Overall Diameter min.Overall Diameter max.Weight approx.
    mm2No./mmmmmΩ/mmmmmmmkg/km
    1x0.5016 /0.201.0037.100.482.002.308
    1x0.7524/0.201.2024.700.482.202.5011
    1x1.0032/0.201.3518.500.482.402.7015
    1x1.5030/0.251.7012.700.482.703.0020
    1x2.5050/0.252.207.600.563.303.6032
    1x4.0056/0.312.754.710.644.004.4048
    1x6.0084/0.313.303.140.644.605.0068
    1x10.0080/0.404.501.820.806.006.50117
    1x16.00126/0.405.201.160.808.008.30193
    1x25.00196/0.406.500.701.0410.1010.40274
    1x35.00276/0.407.700.501.0411.3011.60397
    1x50.00396/0.409.200.301.2013.2013.50547
    1x70.00556/0.4011.000.201.2015.2015.50769
    1x95.00741/0.4014.800.201.2817.0018.00990

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
