    FLRY-A symmetrical conductor structure (type A) Germany Standard Automotive Cable 單芯德國標準汽車用電纜線
    看原圖
    30202333




    商品編號: Caledon-FLRY-A

    FLRY-A symmetrical conductor structure (type A) Germany Standard Automotive Cable 單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLRY-A

    Applications

    This PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition.

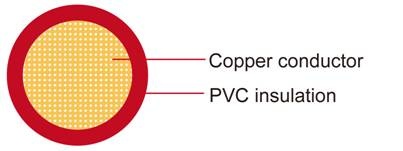

    Construction


    ConductorCu-ETP1 bare or tinned copper according to DIN EN13602
    InsulationPVC
    Standard ComplianceISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to 105°C

    ConductorInsulationCable
    Nominal Cross-sectionNo. and Dia. of WiresDiameter max.Resistance at 20°C Bare/Tinned max.Thickness Wall min.Overall Diameter max.Weight approx.
    mm2No./mmmmmΩ/mmmmmkg/km
    1x0.227/0.210.7084.80/86.500.201.203
    1x0.357/0.260.8052.00/54.500.201.305
    1x0.5019/0.191.0037.10/38.200.221.607
    1x0.7519/0.231.2024.70/25.400.241.909
    1x1.0019/0.261.3518.50/19.100.242.1011
    1x1.5019/0.321.7012.70/13.000.242.4016
    1x2.0019/0.372.009.42/9.690.242.6023
    1x2.5019/0.412.207.60/7.800.283.0026

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
