    FLRY-B Germany Standard Automotive Cable symmetrical conductor structure (type B) –40°C to 105°C 耐熱單芯德國標準汽車用電纜線
    看原圖
    30202334




    商品編號: Caledon-FLRY-B

    FLRY-B Germany Standard Automotive Cable symmetrical conductor structure (type B) –40°C to 105°C 耐熱單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLRY-B

    Applications

    This PVC insulated single-core cable with symmetrical conductor structure (type B) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition.

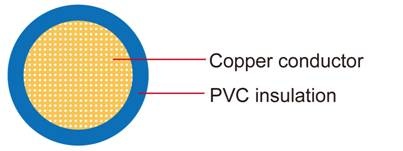

    Construction


    ConductorCu-ETP1 bare or tinned copper according to DIN EN13602
    InsulationPVC
    Standard ComplianceISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to 105°C

    ConductorInsulationCable
    Nominal Cross-sectionNo. and Dia. of WiresDiameter max.Resistance at 20°C Bare/Tinned max.Thickness Wall min.Overall DiameterWeight approx.
    mm2No./mmmmmΩ/mmmmmkg/km
    1x0.3512/0.210.9052.00/5.500.201.405
    1x0.5016/0.211.0037.10/38.200.221.607
    1x0.7524/0.211.2024.70/25.400.241.909
    1x1.0032/0.211.3518.50/19.100.242.1011
    1x1.5030/0.261.7012.70/13.000.242.4016
    1x2.0030/0.311.909.31/9.590.242.6022
    1x2.5050/0.262.207.60/7.800.283.0026
    1x3.0045/0.312.406.21/6.400.283.2033
    1x4.0056/0.312.754.70/4.800.323.7042
    1x6.0084/0.313.303.10/3.200.324.3061
    1x10.0080/0.414.501.82/1.850.486.00108
    1x16.00126/0.416.301.16/1.180.527.90170
    1x25.00196/0.417.800.74/0.760.529.40265

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
