    FLR4Y Germany Standard Automotive Cable –40°C to 105°C 耐熱單芯德國標準汽車用電纜線
    看原圖
    30202338




    商品編號: Caledon-FLR4Y

    FLR4Y Germany Standard Automotive Cable –40°C to 105°C 耐熱單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLR4Y

    Applications

    This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles. Especially suitable for use as fuel gauge wire, this cable is gasoline and diesel resistant.

    聚氯乙烯絕緣單芯電纜是用於汽車,摩托車等機動車輛。特別適合用作燃料計電線,這種電纜是汽油和柴油的抗性。

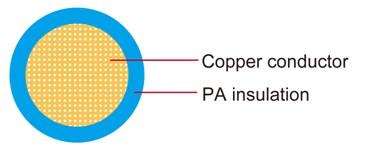

    Construction


    ConductorCu-ETP1 bare or tinned according to DIN EN13602
    InsulationPolyamide (PA)
    Standard ComplianceISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to 105°C

    ConductorInsulationCable
    Nominal Cross-sectionNo. and Dia. of WiresDiameter max.Resistance at 20°C Bare/Tinned max.Thickness Wall min.Overall DiameterWeight approx.
    mm2No./mmmmmΩ/mmmmmkg/km
    FLR4Y-A
    1x0.357/0.260.8052.00/54.500.201.304
    1x0.5019/0.191.0037.10/38.200.221.606
    1x0.7519/0.231.2024.70/25.400.241.908
    1x1.0019/0.261.3518.50/19.100.242.1011
    1x1.5019/0.321.7012.70/13.000.242.4015
    1x2.5019/0.412.207.60/7.800.283.0024
    FLR4Y-B
    1x0.3512/0.210.9052.00/54.500.201.404
    1x0.5016/0.211.0037.10/38.200.221.606
    1x0.7524/0.211.2024.70/25.400.241.908
    1x1.0032/0.211.3518.50/19.100.242.1011
    1x1.5030/0.261.7012.70/13.000.242.4015
    1x2.5050/0.262.207.60/7.800.283.0024
    1x4.0056/0.312.754.70/4.800.323.7040

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
