    FLYY-Single Core Germany Standard Automotive Cable 雙PVC絕緣單芯德國標準汽車用電纜線
    看原圖
    30202340




    商品編號: Caledon-FLYY

    FLYY-Single Core Germany Standard Automotive Cable 雙PVC絕緣單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLYY-Single Core

    Applications

    This PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.

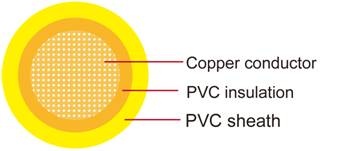

    Construction


    ConductorCu-ETP1 bare according to DIN EN 13602
    InsulationPVC
    SheathPVC
    Standard ComplianceISO 6722 Class B

    Technical Parameters

    Operating temperature: –40°C to 105°C

    ConductorInsulationCable
    Nominal Cross-sectionNo. andDia. of WiresDiameter max.Electrical Resistance at 20°C max.Thickness Wall nom.Diameter of CoreSheath Thickness Nom.Overall Diameter min.Overall Diameter max.Weight approx.
    mm2No./mmmmmΩ/mmmmmmmmmmmkg/km
    1x0.5016/0.211.0037.100.602.100.402.703.1014
    1x0.7524/0.211.2024.700.602.300.403.003.3017
    1x1.0032/0.211.3518.500.602.500.403.203.6020
    1x1.5030/0.261.7012.700.602.800.503.704.1028
    1x2.0040/0.262.009.420.603.000.503.904.3033
    1x2.5050/0.262.207.600.703.500.504.304.8041

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
