    FLYK Germany Standard Automotive Cable 單芯德國標準汽車用電纜線
    看原圖
    30202341




    商品編號: Caledon-FLYK

    FLYK Germany Standard Automotive Cable 單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLYK

    Applications

    This PVC insulated automotive cable is used for cars, trucks and other vehicles.

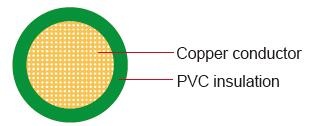

    Construction

    FLYW
    ConductorCu-ETP1 bare according to DIN EN13602
    InsulationPVC insulation(Cold resistant)
    Standard ComplianceISO 6722 Calss B

    Technical Parameters

    Operating temperature: –50°C to 105°C

    Special properties

    Cold bending test according to ISO 6722 at –50 °C.

    Short-term and long-term ageing according to ISO 6722, Class B.

    Conductor ConstructionInsulationCable
    Nominal cross- sectionNo. and Dia. of WiresDiameter
    of Conductor max.
    Electrical
    resistance at 20°C max.
    Nominal thicknessOverall Diameter Min.Overall Diameter Max.Weight approx.
    mm2No./mmmmmΩ/mmmmmmmkg/km
    1x0.5028 /0.161.137.70.62.02.39
    1x0.7542/0.161.325.10.62.22.512
    1x1.0057/0.161.518.80.62.42.715
    1x1.5084/0.161.812.70.62.73.020
    1x2.50140/0.162.37.540.73.53.932
    1x4.00196/0.163.34.710.84.54.953
    1x4.584/0.161.8012.70.62.73.023
    1x6.00294/0.164.23.140.85.36.076
    1x10.00455/0.165.21.851.06.77.3124
    1x16.00490/0.216.71.161.08.28.8198
    1x25.00798/0.218.00.741.29.910.5298



    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
