    FLRYK Germany Standard Automotive Cable –50°C to 105°C Cold resistant 耐寒單芯德國標準汽車用電纜線
    看原圖
    30202342




    商品編號: Caledon-FLRYK

    FLRYK Germany Standard Automotive Cable –50°C to 105°C Cold resistant 耐寒單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLRYK

    Applications

    This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting , charging, lighting, signal and instrument panel circuits.

    聚氯乙烯絕緣低張力汽車電纜在摩托車等機動車輛用於啟動,充電,照明,信號和儀表盤電路。

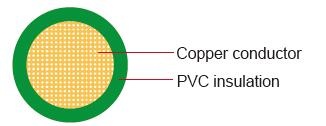

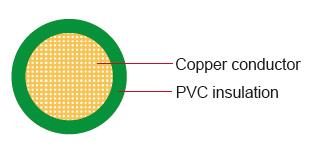

    Construction

    FLYW
    ConductorCu-ETP1 bare according to DIN EN13602
    InsulationPVC insulation(Cold resistant)
    Standard ComplianceISO 6722 Calss B

    Technical Parameters

    Operating temperature: –50°C to 105°C

    Special properties

    Cold bending test according to ISO 6722 at –50 °C.

    Short-term and long-term ageing according to ISO 6722, Class B.

    Conductor ConstructionInsulationCable
    Nominal cross- sectionNo. and Dia. of WiresDiameter
    of Conductor max.
    Electrical resistance at 20°C max.Nominal thicknessOverall Diameter Min.Overall Diameter Max.Weight approx.
    mm2No./mmmmmΩ/mmmmmmmkg/km
    1x0.5016 /0.211.037.70.221.41.67
    1x1.0032/0.211.418.50.302.32.112
    1x1.5030/0.261.712.70.242.22.417
    1x2.5050/0.262.17.60.703.53.733



    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
