    FLRYW-A Germany Standard Automotive Cable –50°C to 125°C Cold resistant 耐熱寒單芯德國標準汽車用電纜線
    看原圖
    30202343




    商品編號: Caledon-FLRYW-A

    FLRYW-A Germany Standard Automotive Cable –50°C to 125°C Cold resistant 耐熱寒單芯德國標準汽車用電纜線



    ★★★★商品說明★★★★

    Germany Standard Automotive Cable

    FLRYW-A

    Applications

    This PVC insulated single-core cable is used as low-tension electric wire for automobiles.

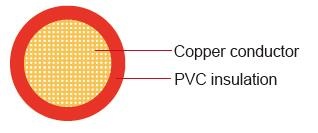

    Construction


    ConductorCu-ETP1 bare according to DIN EN13602
    InsulationPVC
    Standard ComplianceISO 6722 Calss C

    Technical Parameters

    Operating temperature: –50°C to 125°C

    Special properties

    Heat resistant cable



    Conductor ConstructionInsulationCable
    Nominal
    cross- section
    No. and Dia. of WiresDiameter
    of Conductor max.
    Electrical
    resistance at 20°C max.
    Nominal thicknessOverall Diameter Min.Overall Diameter Max.Weight approx.
    mm2No./mmmmmΩ/mmmmmmmkg/km
    1x0.357/0.260.854.40.201.21.35
    1x0.5019/0.191.037.10.221.41.67
    1x0.7519/0.231.224.70.241.71.99
    1x1.0019/0.261.3518.50.241.92.111
    1x1.2519/0.301.714.90.242.12.312
    1x1.5019/0.321.712.70.242.22.416
    1 x2.0019/0.382.09.420.282.52.822



    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
