    BFOU (NEK 606 P5) HALOGEN FREE, LOW SMOKE DENSITY, FIRE RESISTANT AND FLAME RETARDANT POWER CABLE 低煙無鹵,阻燃,耐燃 銅網隔離電力電纜

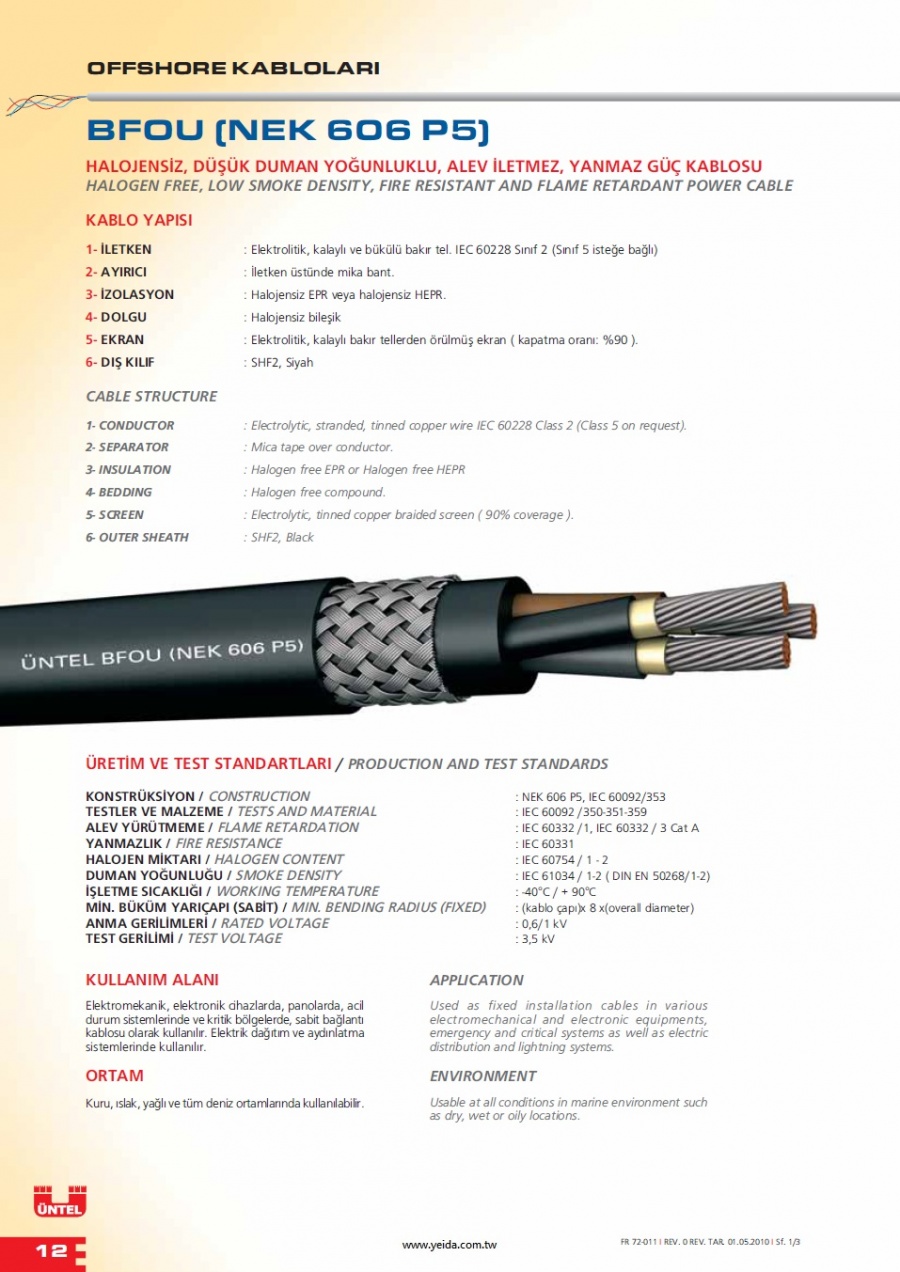

    看原圖
    30197786




    商品編號: UNTL-BFOU-P5

    BFOU (NEK 606 P5) HALOGEN FREE, LOW SMOKE DENSITY, FIRE RESISTANT AND FLAME RETARDANT POWER CABLE 低煙無鹵,阻燃,耐燃 銅網隔離電力電纜



    ★★★★商品說明★★★★

    BFOU (NEK 606 P5)

    HALOGEN FREE, LOW SMOKE DENSITY, FIRE RESISTANT AND FLAME RETARDANT POWER CABLE

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, tinned copper wire IEC 60228 Class 2 (Class 5 on request).

    2- SEPARATOR : Mica tape over conductor.

    3- INSULATION : Halogen free EPR or Halogen free HEPR

    4- BEDDING : Halogen free compound.

    5- SCREEN : Electrolytic, tinned copper braided screen ( 90% coverage ).

    6- OUTER SHEATH : SHF2, Black

    PRODUCTION AND TEST STANDARDS

    CONSTRUCTION : NEK 606 P5, IEC 60092/353

    TESTS AND MATERIAL : IEC 60092 /350-351-359

    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3

    FIRE RESISTANCE : IEC 60331

    HALOGEN CONTENT : IEC 60754 / 1 - 2

    SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)

    WORKING TEMPERATURE : -40°C / + 90°C

    MIN. BENDING RADIUS (FIXED) :  8 x(overall diameter)

    RATED VOLTAGE : 0,6/1 kV

    TEST VOLTAGE : 3,5 kV

    APPLICATION

    Used as fixed installation cables in various electromechanical and electronic equipments, emergency and critical systems as well as electric distribution and lightning systems.

    ENVIRONMENT

    Usable at all conditions in marine environment such as dry, wet or oily locations.

    SAFETY

    Even at direct contact with fire, it will sustain the connection for as long as stated in related standards. That provides necessary equipment (fire alarm and extinguishing systems, water pumps, communication, radio, control systems, lightning, etc.) to work uninterrupted during a fire. Due to its halogen free and flame retardant features, it wont create corrosive gases and prevents the fire from spreading around as well. Thus it protects human life and equipment, during a fire and helps extinguishing the fire. Low smoke density reduces the risk of suffocation and keeps visibility around the fire zone.

    即使在用火直接接觸,它會持續,只要在相關標準規定的連接。它提供必要的設備(火災報警和滅火系統,水泵,通訊,廣播,監控系統,雷擊等)在火災中不間斷地工作。由於其“無鹵阻燃特性,它不會產生腐蝕性氣體,並防止火勢蔓延左右為好。因此,保護人的生命和設備,在火災中,並幫助滅火。低煙密度降低窒息的危險,並保持周圍的火區的透明度。



    ★★★★商品規格描述★★★★

    It includes cables in relation to petroleum and natural gas drilling platform. These cables are produced according to NEK606, IEEE1580 IEC60092/350 and some other standards. We have lots of type approval certificates from ABS, BV, DNV, GL, LR, Class NK, RINA, RMRS, GOST and Turkish Lloyd for our offshore cables.

    它包括相對於石油和天然氣鑽井平台的電纜。這些電纜是根據NEK606,IEEE1580 IEC60092/350和其他一些標準生產。我們有很多來自ABS,BV,DNV,GL,LR,NK級,RINA,RMRS,GOST,為我們的海上電纜的土耳其勞埃德型式認可證書。
