    POLYURETHANE, SHORE POWER MARINE CABLES 岸上供電船用電纜
    看原圖
    30193806




    商品編號: UNTL-SHORE-P

    POLYURETHANE, SHORE POWER MARINE CABLES 岸上供電船用電纜



    ★★★★商品說明★★★★

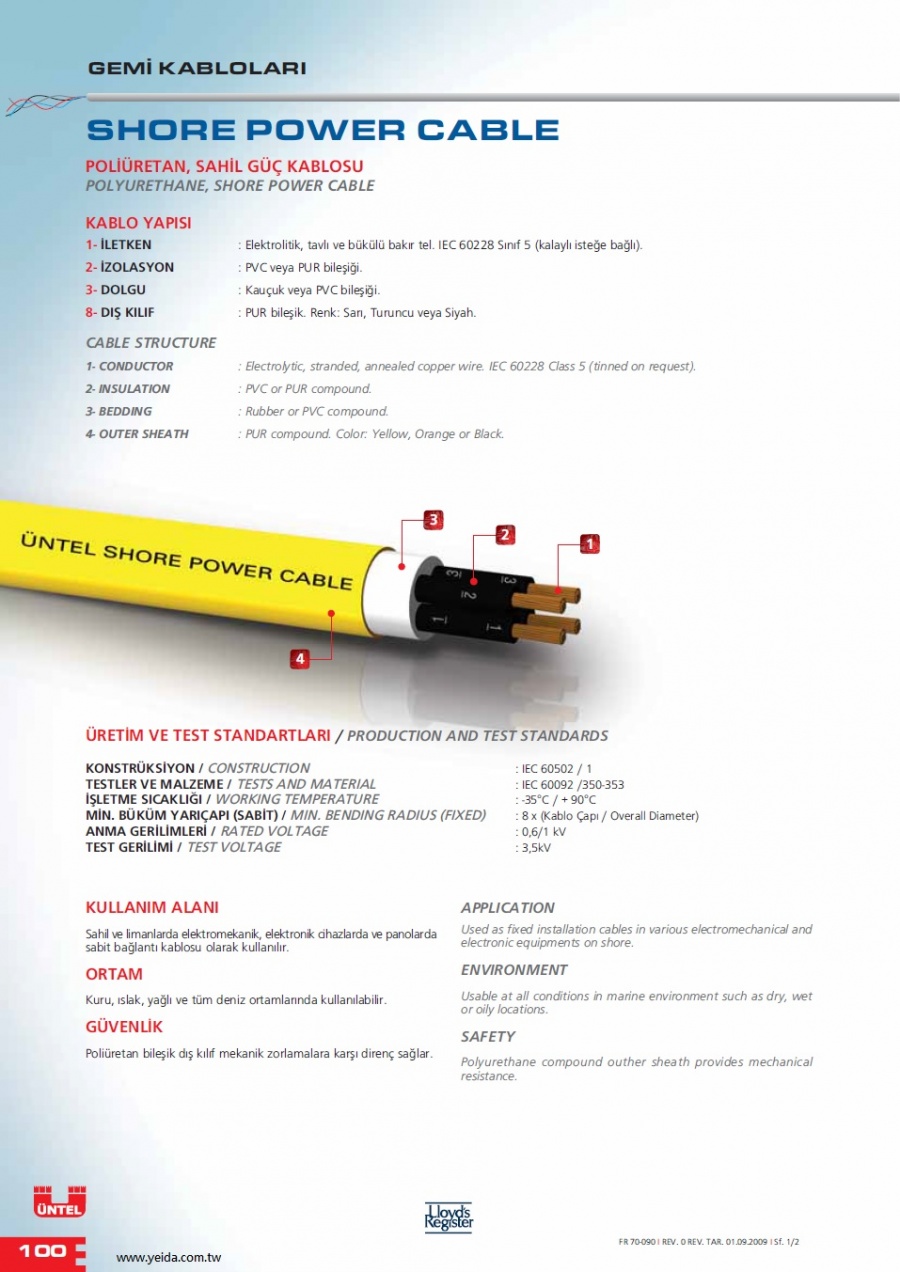

    SHORE POWER CABLE

    POLYURETHANE, SHORE POWER CABLE

    CABLE STRUCTURE

    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 5 (tinned on request).

    2- INSULATION : PVC or PUR compound.

    3- BEDDING : Rubber or PVC compound.

    4- OUTER SHEATH : PUR compound.

    Color: Yellow, Orange or Black.

     PRODUCTION AND TEST STANDARDS
     CONSTRUCTION : IEC 60502 / 1

    TESTS AND MATERIAL : IEC 60092 /350-353

      WORKING TEMPERATURE : -35°C / + 90°C

    MIN. BENDING RADIUS (FIXED) : 8 x (Kablo Çap› / Overall Diameter)

    RATED VOLTAGE : 0,6/1 kV TEST VOLTAGE : 3,5kV

    APPLICATION

    Used as fixed installation cables in various electromechanical and electronic equipments on shore.

    ENVIRONMENT

    Usable at all conditions in marine environment such as dry, wet or oily locations.

    SAFETY

    Polyurethane compound outher sheath provides mechanical resistance.

    These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.

    這些是除石油和天然氣鑽井平台的各種浮游車輛電纜。該電纜可根據IEC60092/350, IEEE45和一些其它標準來生產。我們可以鍵入我們從ABS船用電纜的批准證書,BV,DNV,GL,LR,日本海事協會,RINA,RMRS,GOST和土耳其勞埃德。
