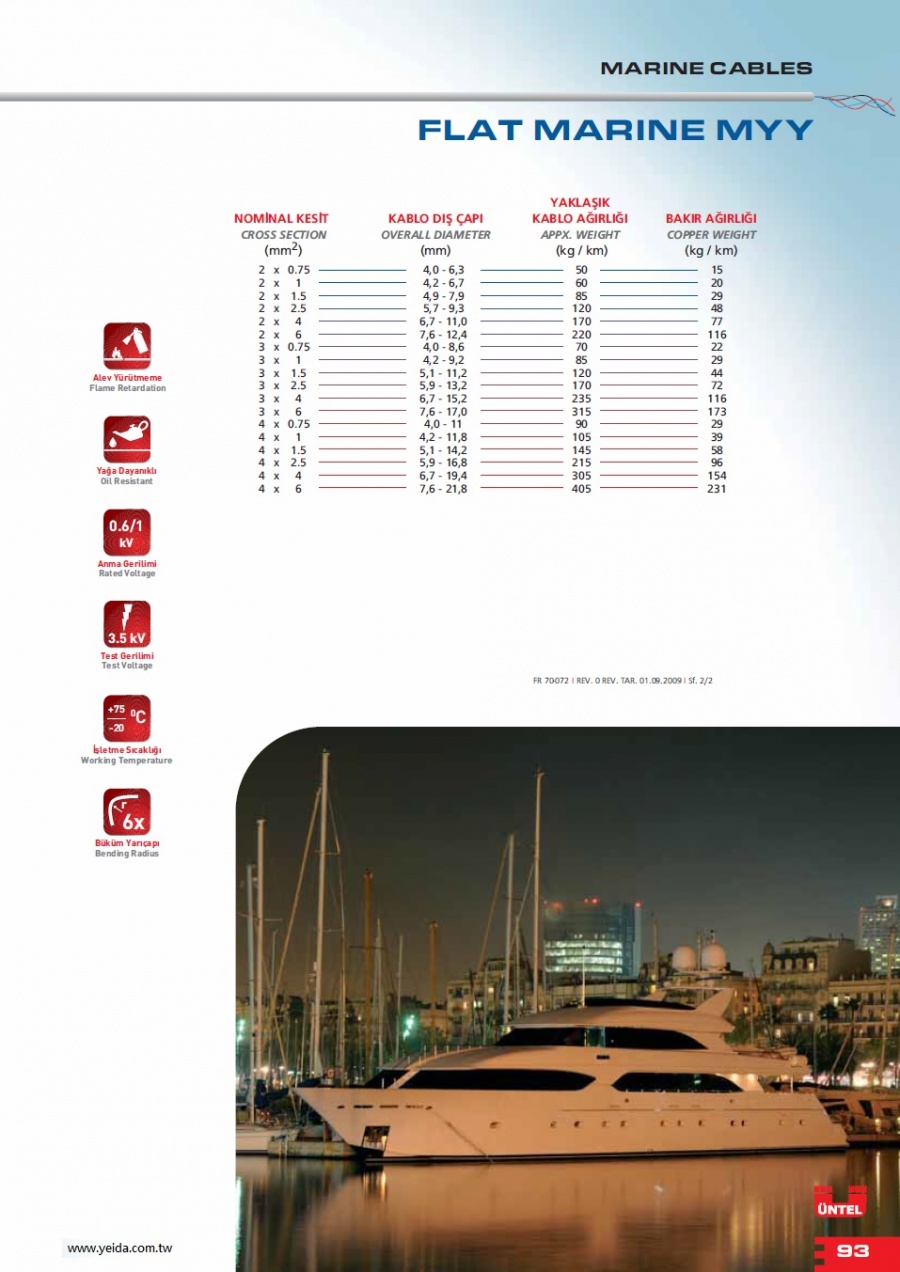

    FLAT MARINE MYY FLAME RETARDANT PVC, FLAT POWER CABLE  耐燃扁平排列船舶電纜
    看原圖
    30193929




    商品編號: UNTL-MYY-F

    FLAT MARINE MYY FLAME RETARDANT PVC, FLAT POWER CABLE 耐燃扁平排列船舶電纜



    ★★★★商品說明★★★★

    FLAT MARINE MYY

    FLAME RETARDANT PVC, FLAT POWER CABLE

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 5 (tinned on request).
    2- INSULATION : PVC compound.
    3- OUTER SHEATH : Flame retardant and oil resistant PVC based compound (ST2). Color: WHITE.

    PRODUCTION AND TEST STANDARDS


    CONSTRUCTION : IEC 60092/353
    TESTS AND MATERIAL : IEC 60092 /350-351-359
    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
    WORKING TEMPERATURE : -20°C / + 75°C
     MIN. BENDING RADIUS (FIXED) : 6 x (Kablo Çap› / Overall Diameter)
    RATED VOLTAGE : 0,6/1 kV
    TEST VOLTAGE : 3,5 kV

    APPLICATION
    Used as fixed installation cables in various electromechanical and
    electronic equipments of yachts and other marine vehicles.

    ENVIRONMENT
    Usable at all conditions in marine environment such as dry or wet
    locations.

    SAFETY
    Due to its flame retardant feature, it prevents the fire from
    spreading around. Thus it protects human life and equipment,
    during a fire.

    These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.

    這些是除石油和天然氣鑽井平台的各種浮游車輛電纜。該電纜可根據IEC60092/350, IEEE45和一些其它標準來生產。我們可以鍵入我們從ABS船用電纜的批准證書,BV,DNV,GL,LR,日本海事協會,RINA,RMRS,GOST和土耳其勞埃德。
