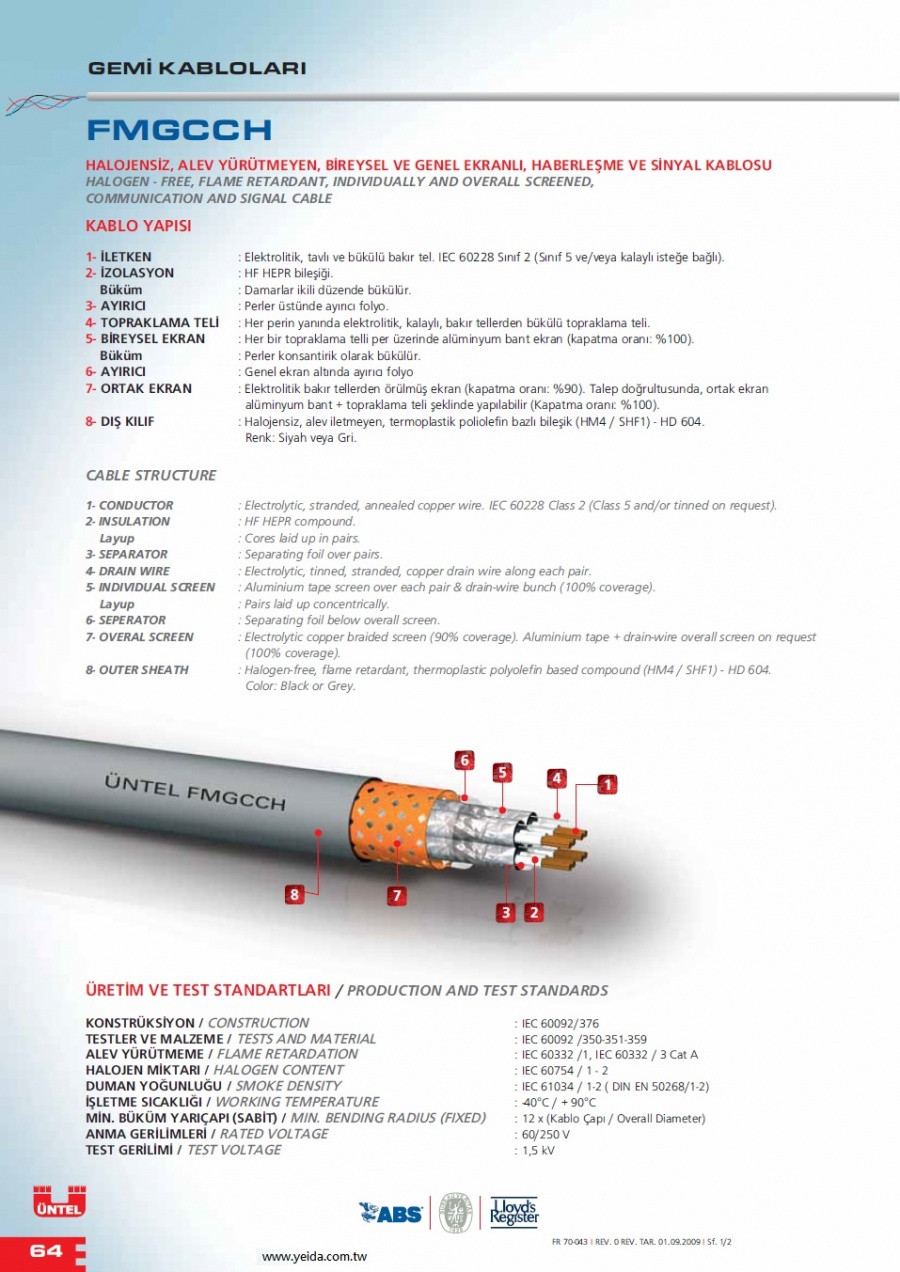

    FMGCCH HALOGEN - FREE, FLAME RETARDANT, INDIVIDUALLY AND OVERALL SCREENED, 無鹵,阻燃,雙屏蔽通信和信號船舶電纜
    看原圖
    30194146




    商品編號: UNTL-FMGCCH

    FMGCCH HALOGEN - FREE, FLAME RETARDANT, INDIVIDUALLY AND OVERALL SCREENED, 無鹵,阻燃,雙屏蔽通信和信號船舶電纜



    ★★★★商品說明★★★★

    FMGCCH

    HALOGEN - FREE, FLAME RETARDANT, INDIVIDUALLY AND OVERALL SCREENED COMMUNICATION AND SIGNAL CABLE

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).
    2- INSULATION : HF HEPR compound.
    Layup : Cores laid up in pairs.
    3- SEPARATOR : Separating foil over pairs.
    4- DRAIN WIRE : Electrolytic, tinned, stranded, copper drain wire along each pair.
    5- INDIVIDUAL SCREEN : Aluminium tape screen over each pair & drain-wire bunch (100% coverage).
    Layup : Pairs laid up concentrically.
    6- SEPERATOR : Separating foil below overall screen.
    7- OVERAL SCREEN : Electrolytic copper braided screen (90% coverage). Aluminium tape + drain-wire overall screen on request
    (100% coverage).
    8- OUTER SHEATH : Halogen-free, flame retardant, thermoplastic polyolefin based compound (HM4 / SHF1) - HD 604.
    Color: Black or Grey.

    PRODUCTION AND TEST STANDARDS
     CONSTRUCTION : IEC 60092/376
    TESTS AND MATERIAL : IEC 60092 /350-351-359
    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
    HALOGEN CONTENT : IEC 60754 / 1 - 2
    SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)
    WORKING TEMPERATURE : -40°C / + 90°C
    MIN. BENDING RADIUS (FIXED) : 12 x (Kablo Çap› / Overall Diameter)
    RATED VOLTAGE : 60/250 V
    TEST VOLTAGE : 1,5 kV

    APPLICATION
    Used as control and communication cables in
    radio, radar and information systems of marine
    vehicles. Its twisted pairs enables proper
    transmission of high frequency signals, while its
    overall screen and individual screens minimizes
    electromagnetic interference both environmentally
    and individually.

    ENVIRONMENT
    Usable at all conditions in marine environment
    such as dry, wet or oily locations, inside the
    engine room, where maximum electromagnetic
    protection is required as well.

    SAFETY
    Due to its halogen-free, low smoke density and
    flame retardant features, it wont create corrosive
    gases nor obstruct visibility and prevents the fire
    from spreading around. Thus it protects human
    life and equipment, during a fire.

    These are cables for all kinds of floating vehicles except oil and natural gas drilling platform. The cables can be produced according to IEC60092/350, IEEE45 and some other standards. We have may type approval certificates for our shipboard cables from ABS, BV, DNV, GL, LR, ClassNK, RINA, RMRS, GOST and Turkish Lloyd.

    這些是除石油和天然氣鑽井平台的各種浮游車輛電纜。該電纜可根據IEC60092/350, IEEE45和一些其它標準來生產。我們可以鍵入我們從ABS船用電纜的批准證書,BV,DNV,GL,LR,日本海事協會,RINA,RMRS,GOST和土耳其勞埃德。
