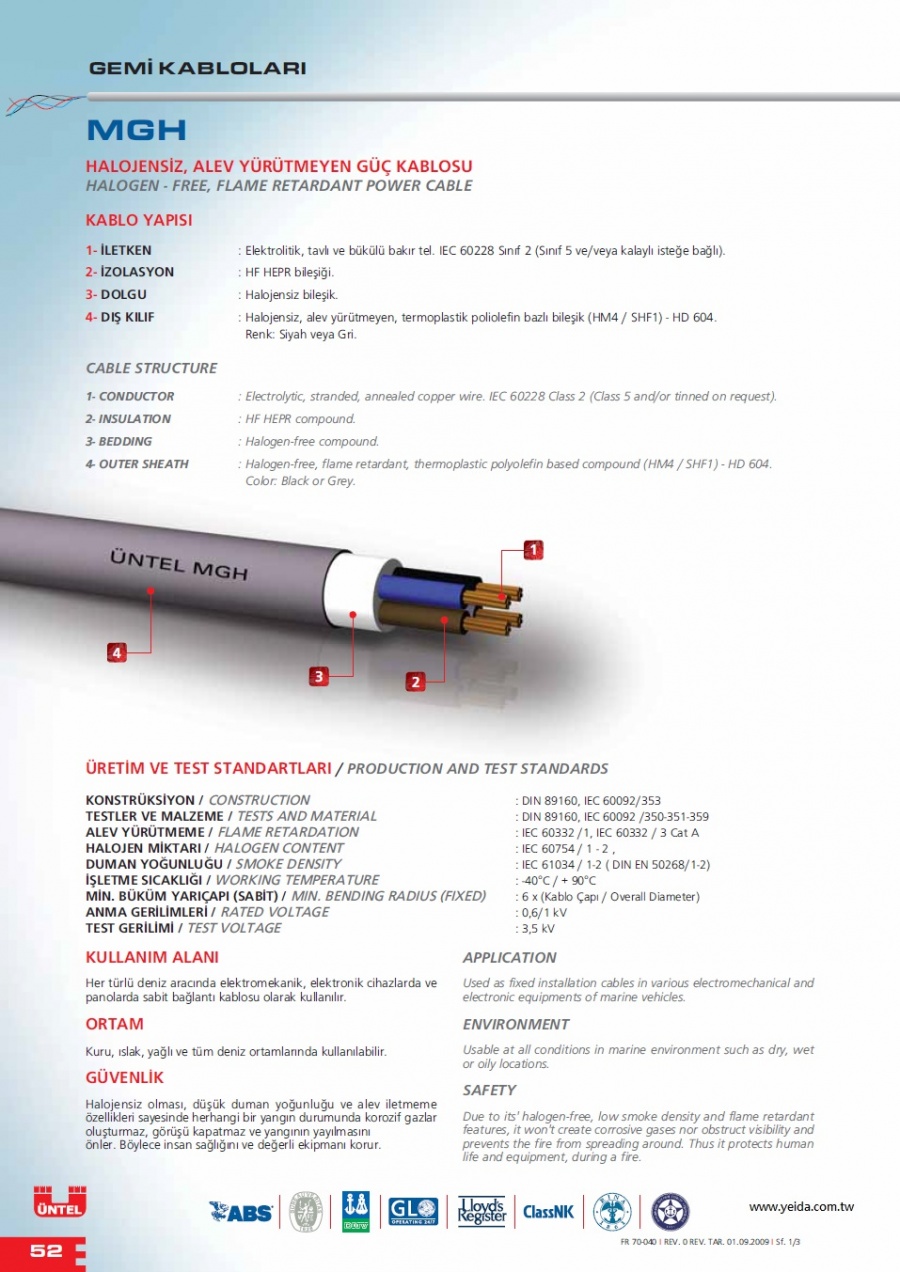

    MGH HALOGEN - FREE, FLAME RETARDANT POWER CABLE 無鹵,阻燃,船舶用電力電纜
    看原圖
    30197397




    商品編號: UNTL-MGH

    MGH HALOGEN - FREE, FLAME RETARDANT POWER CABLE 無鹵,阻燃,船舶用電力電纜



    ★★★★商品說明★★★★

    MGH

    HALOGEN - FREE, FLAME RETARDANT POWER CABLE

    CABLE STRUCTURE
    1- CONDUCTOR : Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).

    2- INSULATION : HF HEPR compound.

    3- BEDDING : Halogen-free compound.

    4- OUTER SHEATH : Halogen-free, flame retardant, thermoplastic polyolefin based compound (HM4 / SHF1) - HD 604. Color: Black or Grey.

    PRODUCTION AND TEST STANDARDS
    CONSTRUCTION : DIN 89160, IEC 60092/353

    TESTS AND MATERIAL : DIN 89160, IEC 60092 /350-351-359

    FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3

    HALOGEN CONTENT : IEC 60754 / 1 - 2 ,

    SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)

    WORKING TEMPERATURE : -40°C / + 90°C

    MIN. BENDING RADIUS (FIXED) : 6 x (Kablo Çap› / Overall Diameter)

    RATED VOLTAGE : 0,6/1 kV

    TEST VOLTAGE : 3,5 kV


    APPLICATION

    Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles.

    ENVIRONMENT

    Usable at all conditions in marine environment such as dry, wet or oily locations.

    SAFETY

    Due to its halogen-free, low smoke density and flame retardant features, it wont create corrosive gases nor obstruct visibility and prevents the fire from spreading around. Thus it protects human life and equipment, during a fire.
